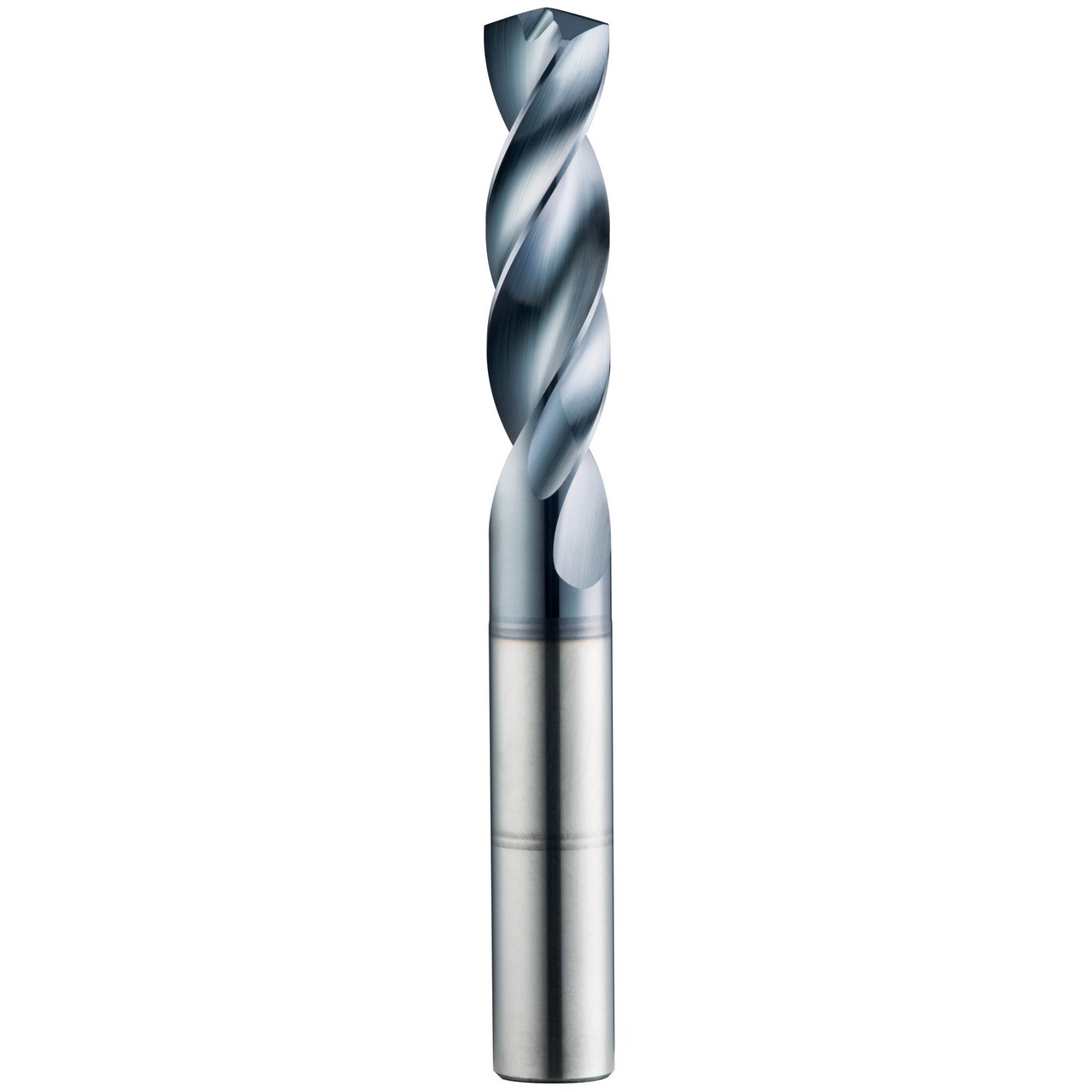

SGS 51335 | #21 x 0.25" Shank x 7/8" LOC x 2-5/8" OAL 2 Flute AlTiN Coated Screw Machine Length Drill Bit

$62.03
Brand:
SGS
Drill Point Angle:
145°
Overall Length (Inch):
2-5/8"
Overall Length (Decimal Inch):
2.6250"
Overall Length (mm):
66.68mm
Finish/Coating:
TA
Flute Type:
Spiral
Cutting Direction:
RHC
SKU:
10229209
UPC:
691781513355
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

Features:

  • Double margin design improves accuracy and surface finish along with increased strength for aggressive drilling
  • Specialized selfcentering notched point eliminates the need for spot drilling decreasing thrust and deflection
  • Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
  • Recommended for materials ≤ 56 HRC (≤ 577 BHN)

Product Specifications
Wire Diameter#21
Cutting Diameter (Inch)0.159"
Shank Diameter (Inch)0.25"
Length of Cut (Inch)7/8"
Overall Length (Inch)2-5/8"
Shank Length (Inch)1.4375"
Cut of DirectionRight Hand
Flute TypeSpiral
Cleared Length (Inch)0.7188"
Helix Angle32 Degree
Point Angle145 Degree
CoatingAlTiN
Number of Flutes2
