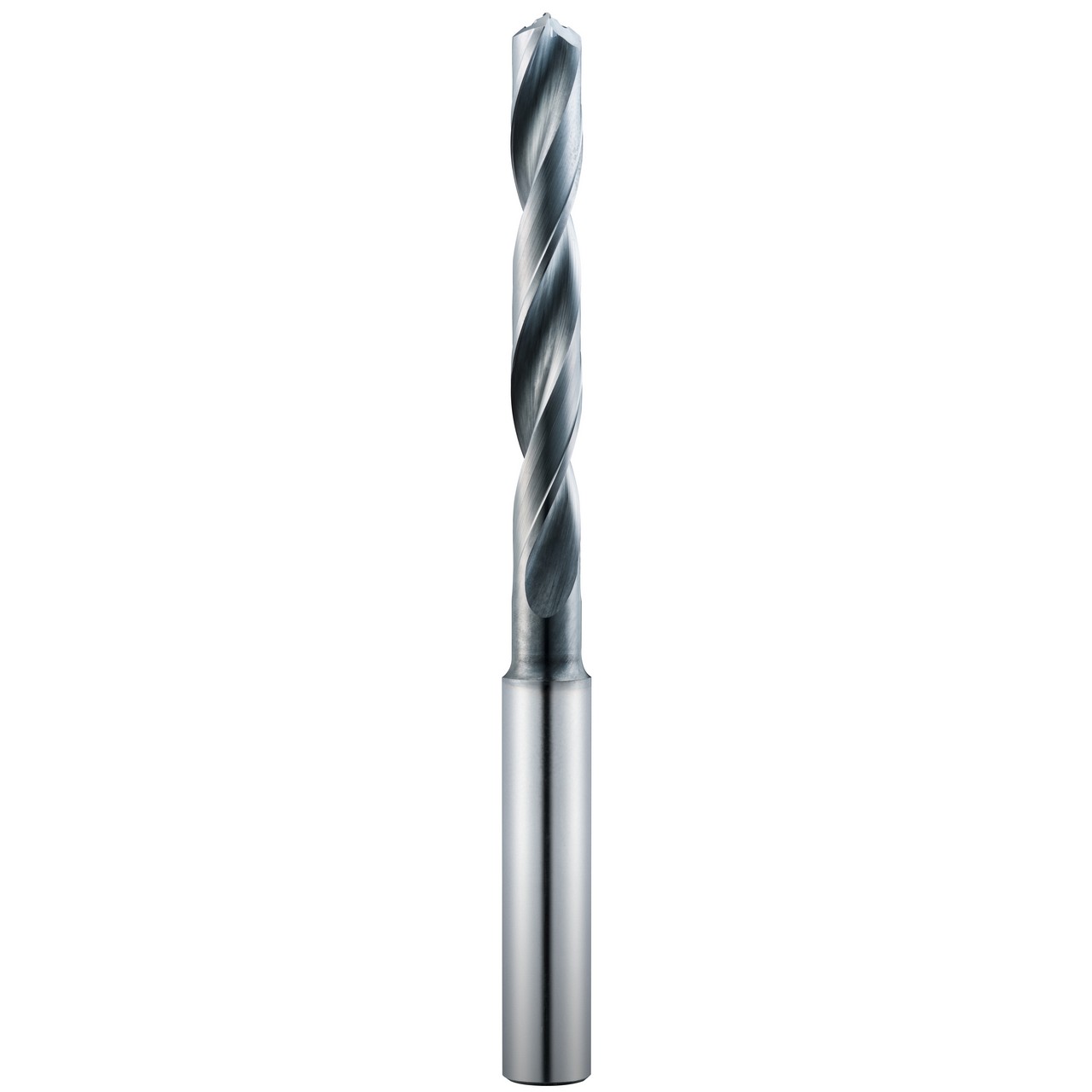

SGS 56854 | 11/32" Diameter x 2/5" Shank x 61" LOC x 103" OAL 2 Flute AlTiN Coated Screw Machine Length Drill Bit

$114.65
Brand:
SGS
Drill Point Angle:
135°
Overall Length (Inch):
4-1/16"
Overall Length (Decimal Inch):
4.0551"
Overall Length (mm):
103mm
Finish/Coating:
TA
Flute Type:
Spiral
Cutting Direction:
RHC
SKU:
10230116
UPC:
691781568546
Weight:
0.18 LBS
Shipping:
Free Shipping
Features:
  • Coolant through design improves coolant flow to extend tool life and aid in chip evacuation
  • Eccentric 2-margin design reduces frictional heat and minimizes material adhesion to the margins without weakening the drill
  • Computer controlled edge honing protects against chip damage
  • High-performance point design stabilizes on contact for exceptional hole size and cylindricity allowing for low thrust force and extended tool life
  • SGS Ti-NAMITE -A coating provides exceptional wear and erosion resistance when drilling heat resisting alloys like Inconel, Stainless Steel, and Titanium Alloys
  • Recommended for materials ≤ 50HRc (475 Bhn)

Product Specifications
Cutting Diameter (Inch)11/32"
Shank Diameter (Inch)2/5"
Length of Cut (Inch)61"
Overall Length (Inch)103"
Shank Length (Inch)1.5748"
Cut of DirectionRight Hand
Flute TypeSpiral
Cleared Length (Inch)1.9291"
Helix Angle30 Degree
Point Angle135 Degree
CoatingAlTiN
Number of Flutes2
