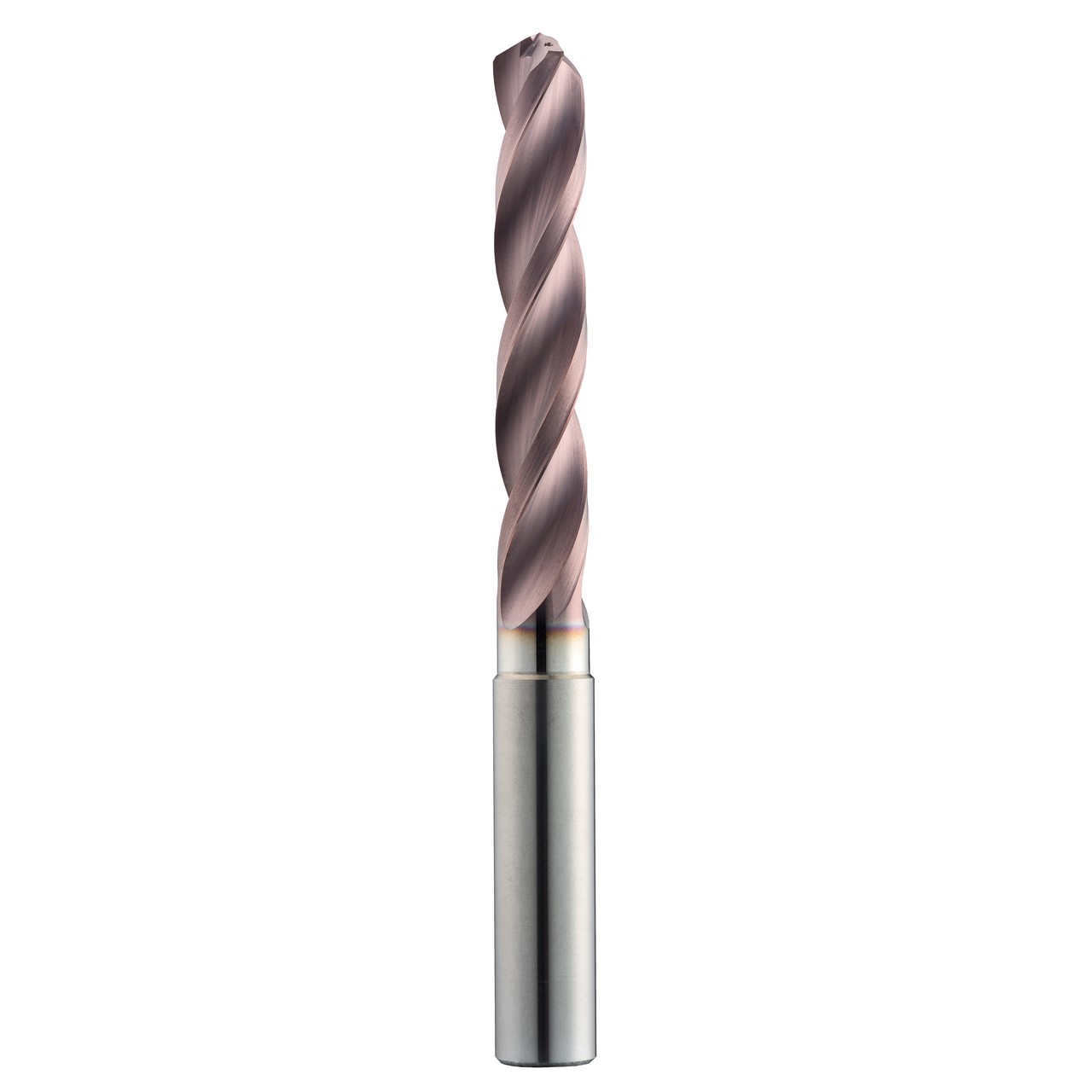

Features:
- 3-margin design improves hole stability and size control while providing superior finish, roundness and cylindricity
- Self-stabilizing pyramid point design stabilizes the drill on contact with the workpiece
- Open flute structure efficiently transports chips while maintaining strength at high feed rates
- Sculpted gash allows chips to easily flow away from the drill center
- Recommended for materials ≤ 43 HRC (≤ 400 BHN)
Product Specifications
| Cutting Diameter (Inch) | 14 mm |
| Shank Diameter (Inch) | 14.1 mm |
| Length of Cut (Inch) | 77.1 mm |
| Overall Length (Inch) | 124.1 mm |
| Shank Length (Inch) | 45.1 mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Cleared Length (Inch) | 60 mm |
| Helix Angle | 30 Degree |
| Point Angle | 124 Degree |
| Coating | TM |
| Number of Flutes | 3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Flute Type:
Spiral
Drill Point Angle:
124°
Overall Length (Inch):
4-7/8"
Overall Length (Decimal Inch):
4.8819"
Overall Length (mm):
124mm
Cutting Direction:
RHC
Finish/Coating:
TM
