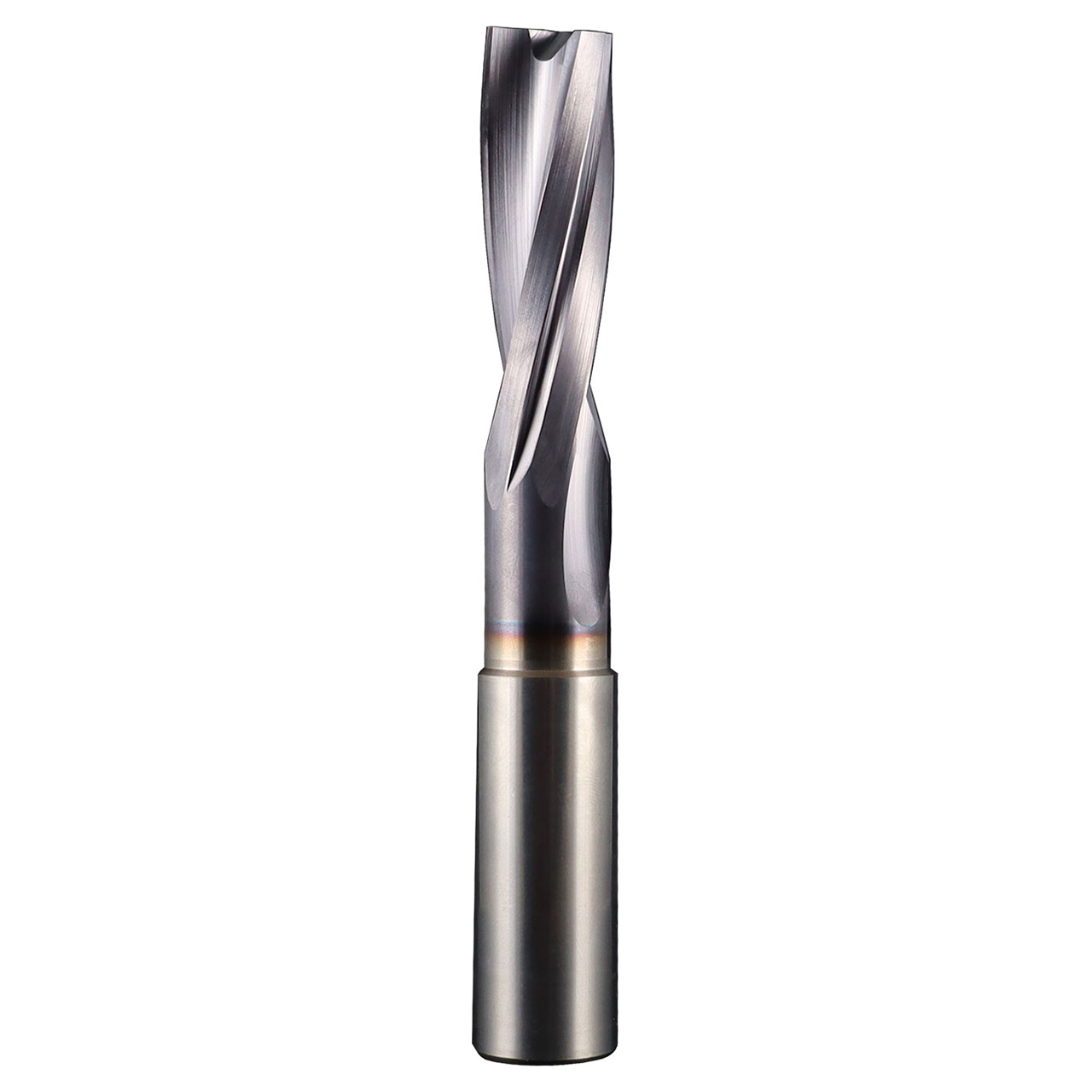

SGS 67918 | 0.650" Diameter x 0.709" Shank x 7.677" OAL x 180 Degree 2 Flute TX (Ti-NAMITE-X) Coated Flat Bottom Drill

$387.07
Brand:
SGS
Overall Length (Decimal Inch):
7.6770"
Overall Length (mm):
195.00mm
Finish/Coating:
TX (Ti-NAMITE-X)
interval quantity:
1
SKU:
10235136
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
SGS 67918 | 0.650" Diameter x 0.709" Shank x 7.677" OAL x 180 Degree 2 Flute TX (Ti-NAMITE-X) Coated Flat Bottom Drill

Related Products

Features:

  • 4-margin design improves accuracy and surface finish along with increased strength for aggressive drilling
  • Specialized self-centering notched point eliminates the need for spot drilling decreasing thrust and deflection
  • Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
  • Recommended for materials ≤ 56 HRc (≤ 577 Bhn)

Product Specifications
Manufacturer Part Number67918
Size16.50mm
Cutting Diameter (Decimal Inch)0.650"
Cutting Diameter (mm)16.50mm
Shank Diameter (Decimal Inch)0.709"
Shank Diameter (mm)18.00mm
Flute Length (Decimal Inch)4.213"
Flute Length (mm)107.00mm
Usable Length (Decimal Inch)3.287"
Usable Length (mm)83.50mm
Overall Length (Decimal Inch)7.677"
Overall Length (mm)195.00mm
Shank Length (Decimal Inch)2.874"
Shank Length (mm)73.00mm
Shank Diameter Toleranceh6
Point Angle (Degree)180 Degree
Flute TypeSpiral
Number of Margins4
Number of Flutes2
Reach (xD)5xD
Center CuttingNo
Double MarginsYes
High PerformanceYes
Self CenteringYes
CoatingTX (Ti-NAMITE-X)
Product TypeFlat Bottom Drill
