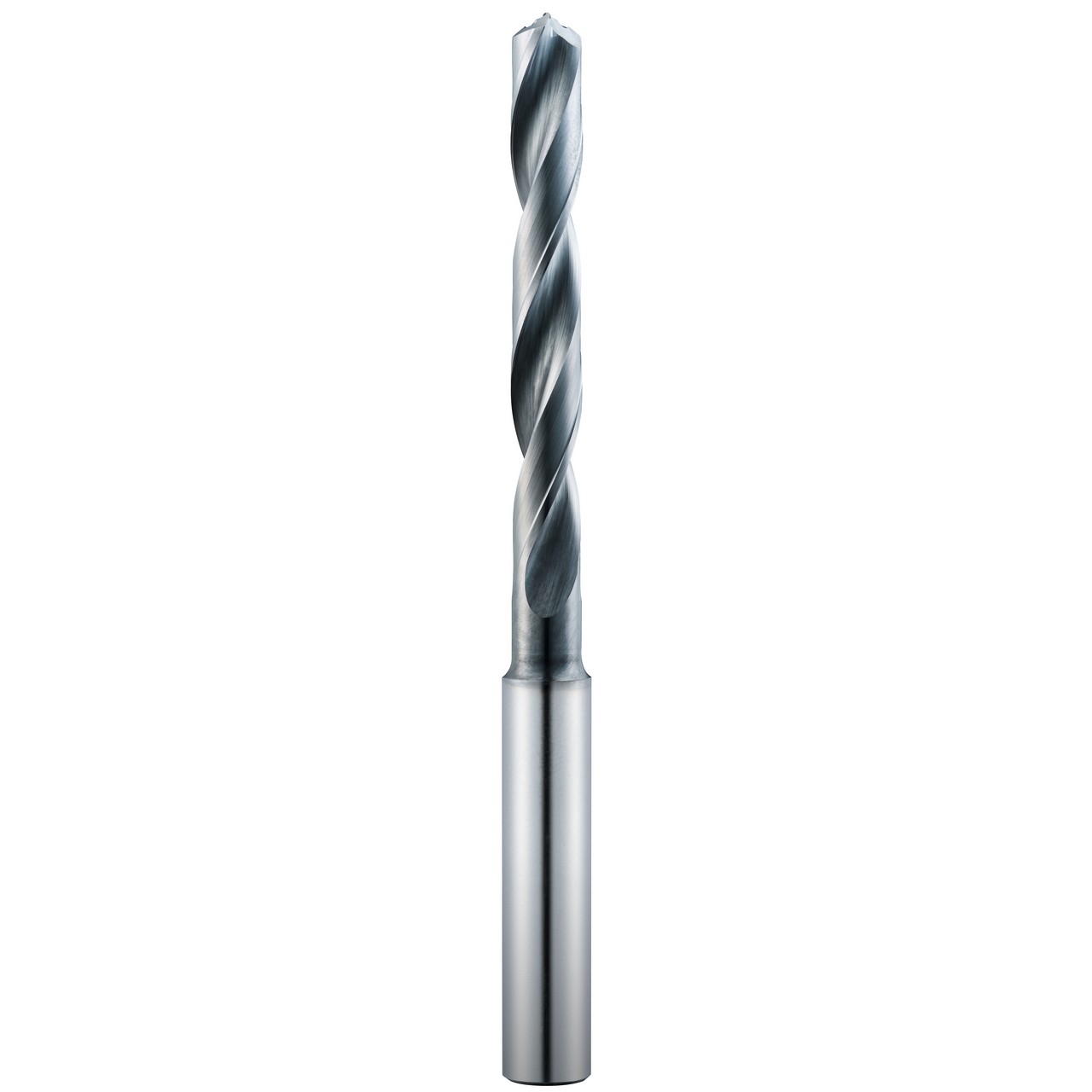

SGS 69226 | 3.3mm Diameter x 6.0mm Shank x 28.0mm LOC x 66.0mm OAL 2 Flute AlTiN Coated Screw Machine Length Drill Bit

$201.38 $96.66
(You save $104.72)
Brand:
SGS
Drill Point Angle:
135 Degree
Overall Length (Inch):
2-7/16"
Overall Length (Decimal Inch):
2.5984"
Overall Length (mm):
66mm
Finish/Coating:
TA
Flute Type:
Spiral
Cutting Direction:
RHC
interval quantity:
1
SKU:
10232416
UPC:
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Coolant through design improves coolant flow to extend tool life and aid in chip evacuation
  • Eccentric 2-margin design reduces frictional heat and minimizes material adhesion to the margins without weakening the drill
  • Computer controlled edge honing protects against chip damage
  • High-performance point design stabilizes on contact for exceptional hole size and cylindricity allowing for low thrust force and extended tool life
  • SGS Ti-NAMITE -A coating provides exceptional wear and erosion resistance when drilling heat resisting alloys like Inconel, Stainless Steel, and Titanium Alloys
  • Recommended for materials ≤ 50HRC (475 BHN)

Product Specifications
Cutting Diameter (mm)3.3mm
Shank Diameter (mm)6.0mm
Length of Cut (mm)28.0mm
Overall Length (mm)66.0mm
Shank Length (mm)36.0mm
Cut of DirectionRHC
Flute TypeSpiral
Cleared Length (mm)23 mm
Helix Angle30 Degree
Point Angle135 Degree
CoatingAlTiN
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
