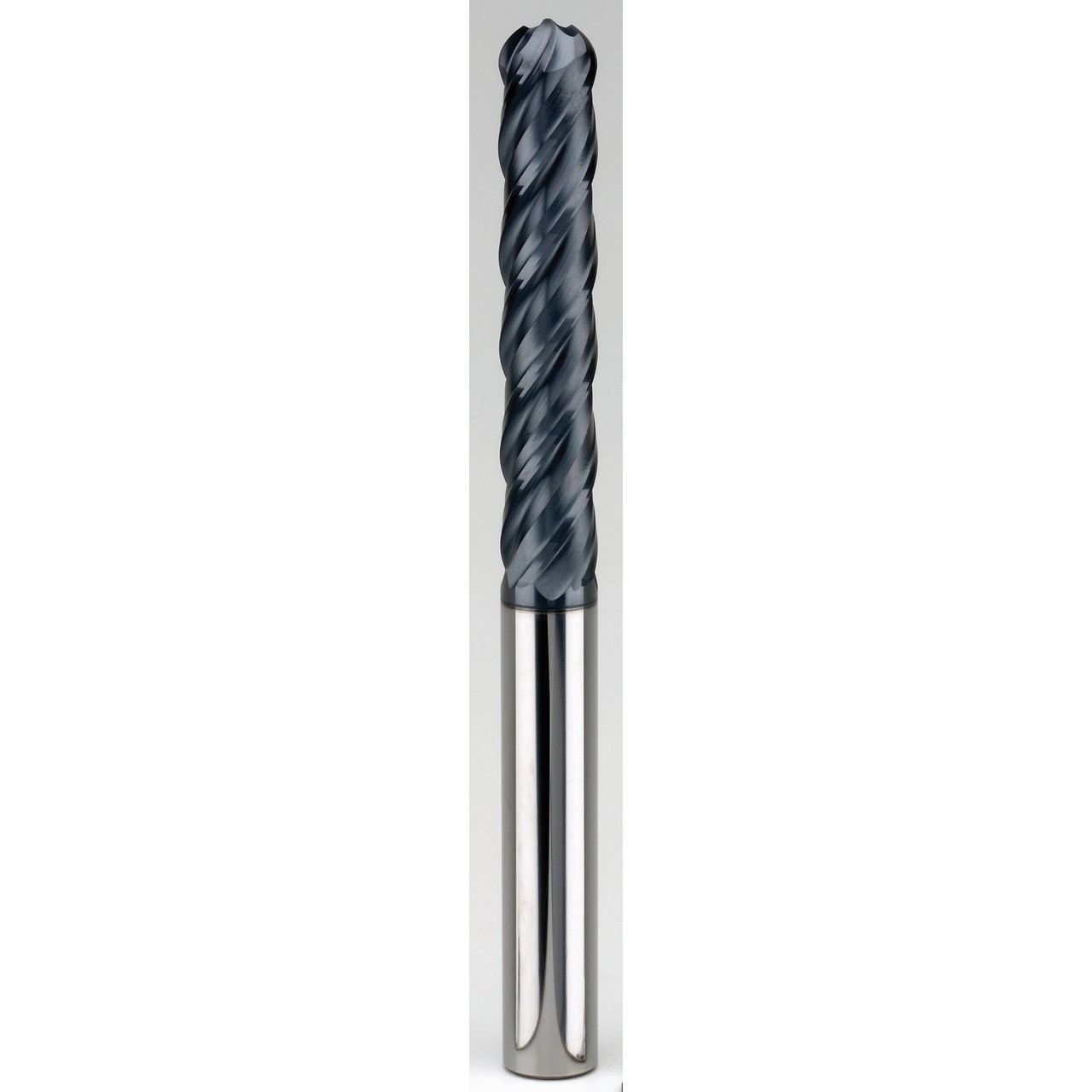

SGS 70442 | 1/8" Diameter x 1/8" Shank x 1" LOC x 3" OAL 4 Flute TX Coated Ball End Mill

$30.49
Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
TX
Cutting Direction:
RHC
Helix Angle (Degree):
38 Degree
SKU:
25200920
UPC:
691781704425
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)1/8"
Shank Diameter (Inch)1/8"
Length of Cut (Inch)1"
Overall Length (Inch)3"
Shank Length (Inch)2"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle38 Degree
CoatingTX
Number of Flutes4

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
TX
Cutting Direction:
RHC
Helix Angle (Degree):
38 Degree
