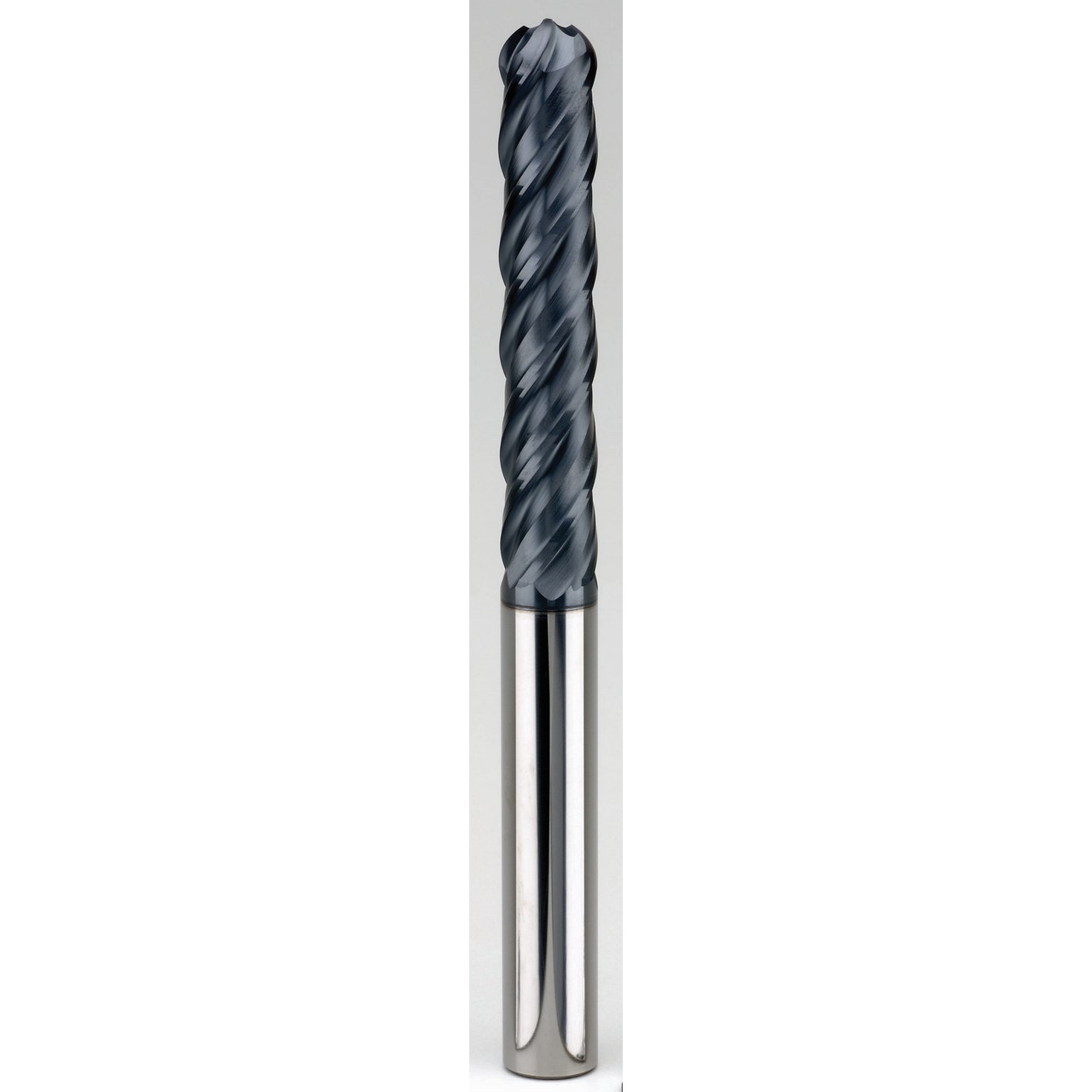

SGS 70447 | 1/4" Diameter x 1/4" Shank x 1-1/8" LOC x 3" OAL 4 Flute TX Coated Ball End Mill

$36.80
Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
TX
Cutting Direction:
RHC
Helix Angle (Degree):
38 Degree
SKU:
25200923
UPC:
691781704470
Weight:
0.07 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)1/4"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)1-1/8"
Overall Length (Inch)3"
Shank Length (Inch)1.875"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle38 Degree
CoatingTX
Number of Flutes4
