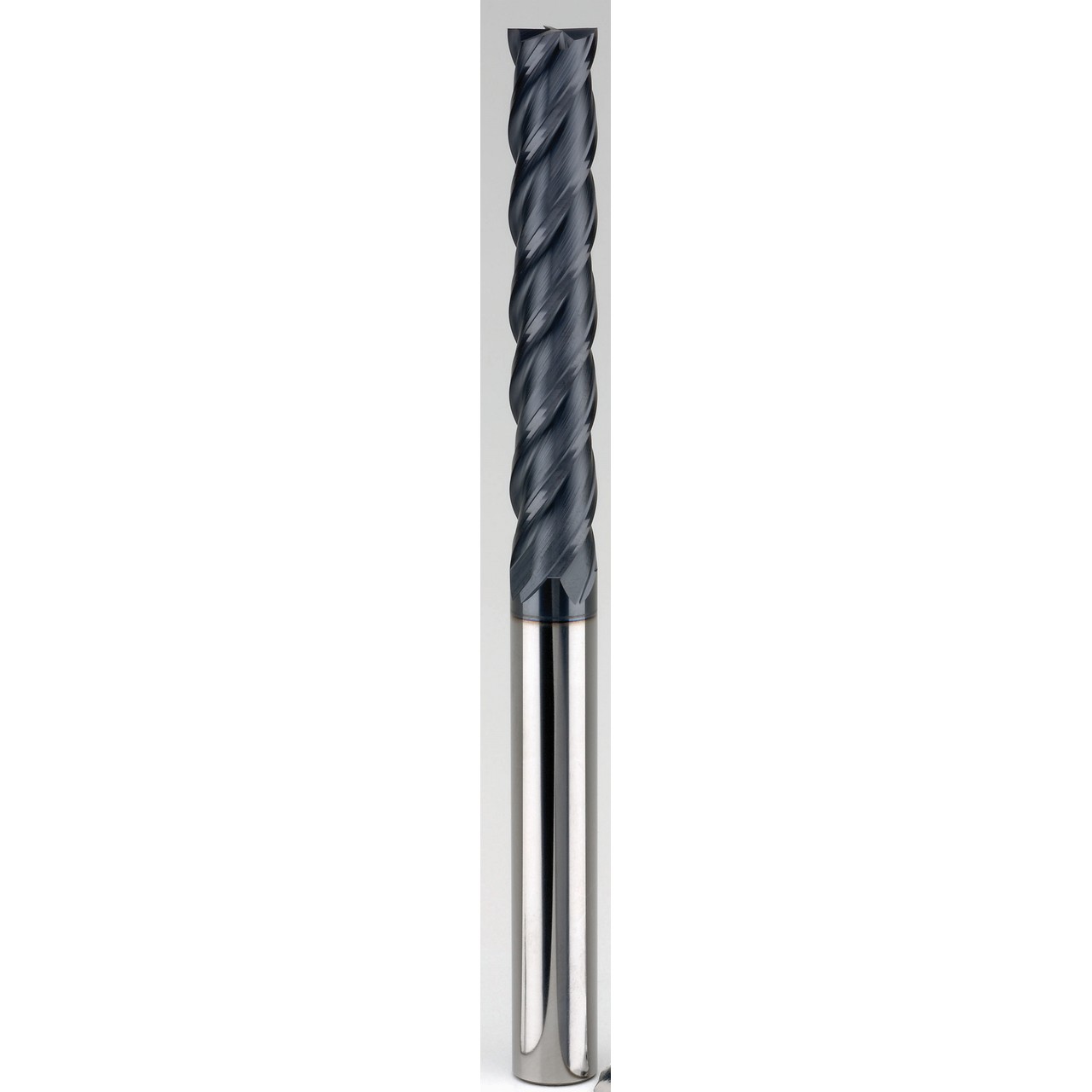

SGS 70477 | 5/16" Diameter x 5/16" Shank x 1-5/8" LOC x 4" OAL 4 Flute TX Coated Square End Mill

$45.04
Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Finish/Coating:
TX
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Helix Angle:
38 Degree
Cutting Direction:
RHC
SKU:
25200946
Weight:
0.15 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)5/16"
Shank Diameter (Inch)5/16"
Length of Cut (Inch)1-5/8"
Overall Length (Inch)4"
Shank Length (Inch)2.375"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle38 Degree
CoatingTX
Number of Flutes4

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Finish/Coating:
TX
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Helix Angle:
38 Degree
Cutting Direction:
RHC
