Features

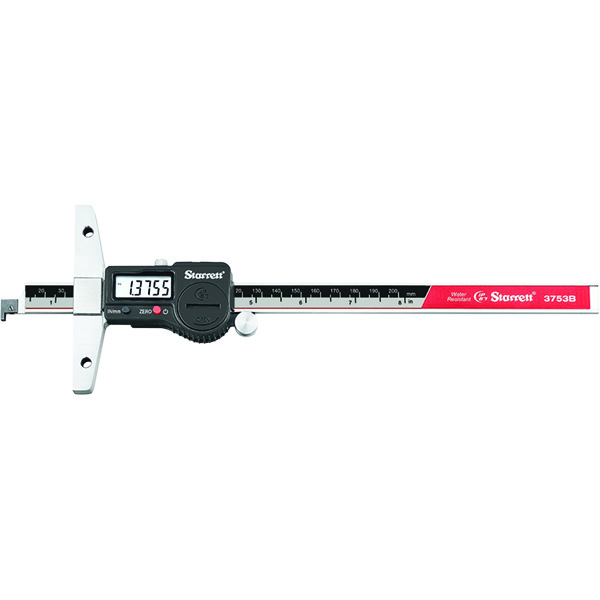

- Clear, easily-read numbers, properly sized for the tool
- Hardened stainless steel body and slide for long life
- Fine adjustment thumb roll for precision measurements
- Lock to hold the slide in position
- Hardened base is 3-15/16" (99mm) long, but optional base extensions of 7" and 12" (175 and 300mm) are available.
- Spacing between holes is 2-3/4" (70mm).
- Hook attachment, to take readings from the edge of a work piece to edges of slots, grooves, shoulders, and other I.D. length dimensioning.
- The removable hook has the screw permanently attached to prevent loss.
- One-year minimum battery life with furnished 3-volt battery, CR2033
- Inch/millimeter conversion
- Zero at any position
- Automatic shutoff after 30 minutes of non-use without loss of position upon reactivation
- Linear accuracy :+/- .001" (0.03mm)
- .0005" (0.010mm) resolution
Product Specifications
| Range (in) | 0" to 8" |
| Range (mm) | 0mm to 200mm |
| Resolution (in) | .0005" |
| Resolution (mm) | 0.01mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Type:
Electronic Depth Gage
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0000"
Minimum Measurement (mm):
0mm
Maximum Measurement (Inch):
8"
Maximum Measurement (Decimal Inch):
8.0000"
Maximum Measurement (mm):
200mm
Resolution (Inch):
0"
Resolution (Decimal Inch):
0.0005"
Resolution (mm):
0.01mm
Base Length (Inch):
3-15/16"
Base Length (Decimal Inch):
3.9375"
Base Length (mm):
100mm
Display Type:
LCD
Material:
Hardened Stainless Steel
Ships:
From Manufacturer
