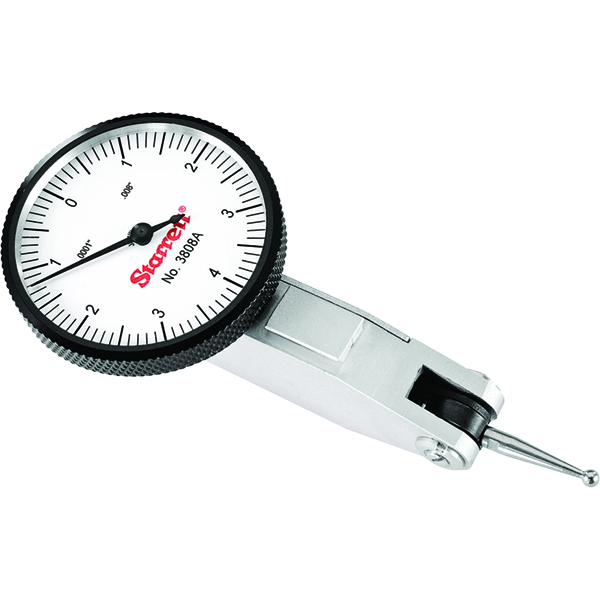

Features
- Three dovetail positioning mounts work with most existing test indicator accessories
- Precision gear-driven design with smooth, jeweled movement
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Meets or exceeds ANSI/ASME accuracy specifications
- High contrast, easy-to-read dials with a white background on inch reading and a yellow background on millimeter reading indicators
- Narrow body for in reach ability
- Satin chrome finish for durability
Product Specifications
| Range (in) | .008" |
| Graduations (in) | .0001" |
| Dial Reading | 0-4-0 |
| Attachments | .156" contact point, 3/8" & 5/32" dovetail clamps & case |
| Dial Color | White 1-1/4" Diameter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0000"
Maximum Measurement (Inch):
1/64"
Maximum Measurement (Decimal Inch):
0.0080"
Dial Graduation (Inch):
0"
Dial Graduation (Decimal Inch):
0.0001"
Dial Reading:
0-4-0
Dial Diameter (Inch):
1-1/4"
Dial Diameter (Decimal Inch):
1.2500"
Dial Color:
White
Ships:
From Manufacturer
