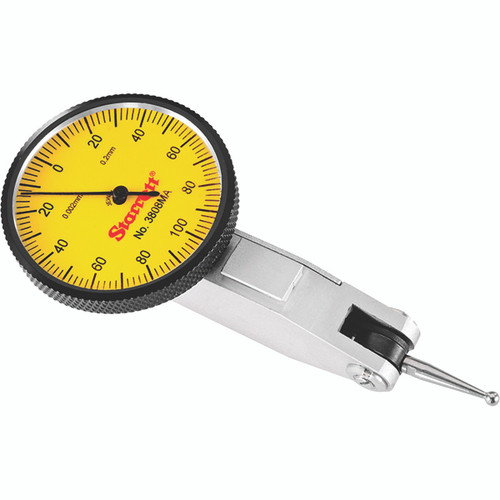

Features
- Three dovetail positioning mounts work with most existing test indicator accessories
- Precision gear-driven design with smooth, jeweled movement
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Meets or exceeds ANSI/ASME accuracy specifications
- High contrast, easy-to-read dials with a white background on inch reading and a yellow background on millimeter reading indicators
- Narrow body for in reach ability
- Satin chrome finish for durability
Product Specifications
| Range (mm) | 0.2mm |
| Graduations (mm) | 0.002mm |
| Dial Reading | 0-100-0 |

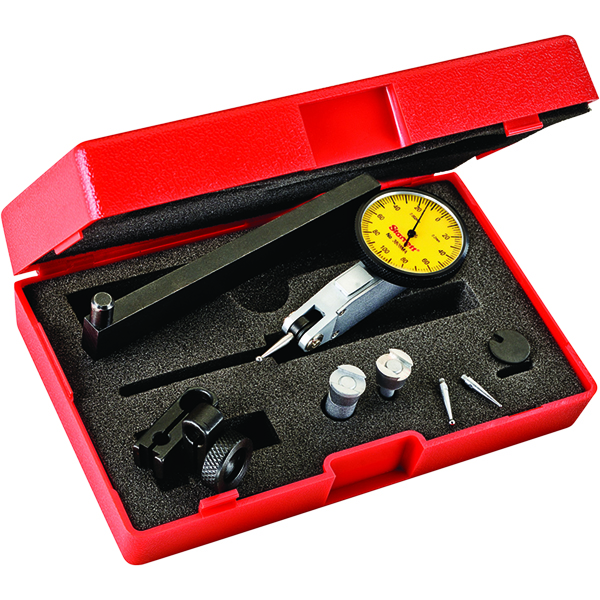

| Attachments | 2mm & 4mm contact points, 9.5mm & 4mm dovetail clamps, 4mm swivel post holder, tool post holder, contact wrench & case |
| Dial Color | Yellow 32mm Diameter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Minimum Measurement (mm):
0mm
Maximum Measurement (mm):
0.20mm
Dial Graduation (mm):
0.002mm
Dial Reading:
0-100-0
Dial Diameter (Inch):
1-1/4"
Dial Diameter (Decimal Inch):
1.2500"
Dial Diameter (mm):
32mm
Dial Color:
Yellow
Ships:
From Manufacturer
