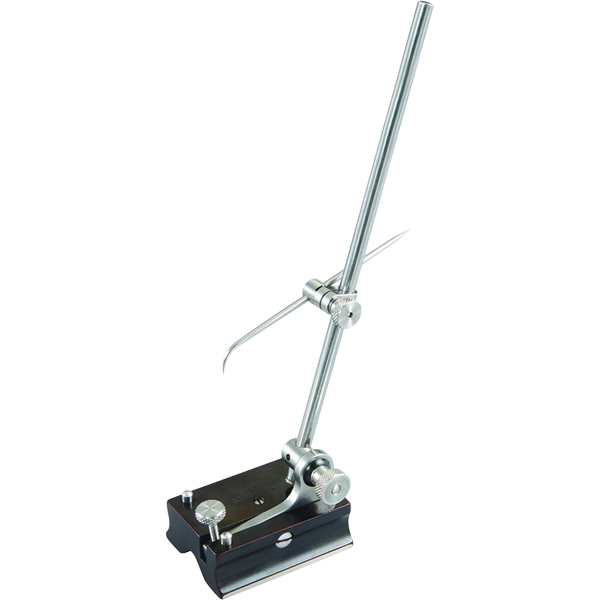

Features
- Smaller base and spindle than other surface gages and is designed for lighter work
- Two frictionally held gage pins in the steel base which can be pushed down and used against the edge of a surface plate or T-slot for linear work
- Weighs only ten ounces (.28kg.) and takes up very little space in a toolbox
- Only 1-3/8" (35mm) high, including the lower sleeve in the rocker arm
- Scriber has a 3/32" (2.4mm) diameter and is 3-1/4" (82mm) long
Product Specifications
| Spindle Length (in) | 7" |
| Spindle Length (mm) | 100 & 175mm |
| Base Size (in) | 2" x 1-1/2" |
| Base Size (mm) | 50 x 38mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Type:
Surface Gage
Spindle Length (Inch):
7"
Spindle Length (Decimal Inch):
7.0000"
Spindle Length (mm):
175mm
Number of Spindles:
1
Ships:
From Manufacturer
