Features

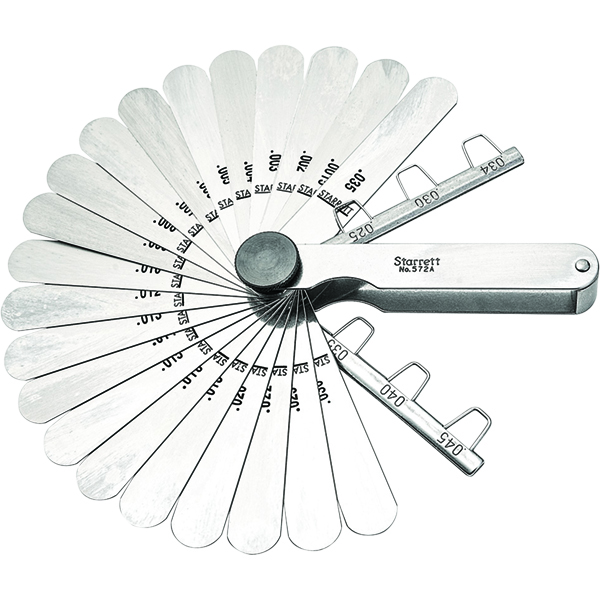

- Leaves made of finest tempered-steel, carefully finished to correct thickness, individually tested and marked with thickness
- Locking device on most gages - permits securely locking one or more leaves in position
- Leaves easily removed or replaced
- Rugged, substantial steel case protects leaves
- Straight Leaves
- Leaves made of finest tempered-steel
- Locking device on most gages permits securely locking one or more leaves in position
Product Specifications
| Range (in) | .0015"-035" |
| Number of Leaves | 22 |
| Size of Leaves (in) | 1/2"x3-1/32" |
| Thickness (in) | .0015-035 |
| Leave Type | Straight |
| Leaves | .0015, .002, .0025, .003 to .010 and .012 to .016 in .001 increments, .018, .020, .022, .025, .030, .0356 Spark:.025, .030, .034, .035, .040, .045 |
| Locking Device | Yes |
| Material | Tempered Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0015"
Minimum Measurement (mm):
0.04mm
Maximum Measurement (Inch):
1/32"
Maximum Measurement (Decimal Inch):
0.0350"
Maximum Measurement (mm):
0.89mm
Material:
Tempered Steel
Number of Leaves:
22
Leave Type:
Straight
Ships:
From Manufacturer
