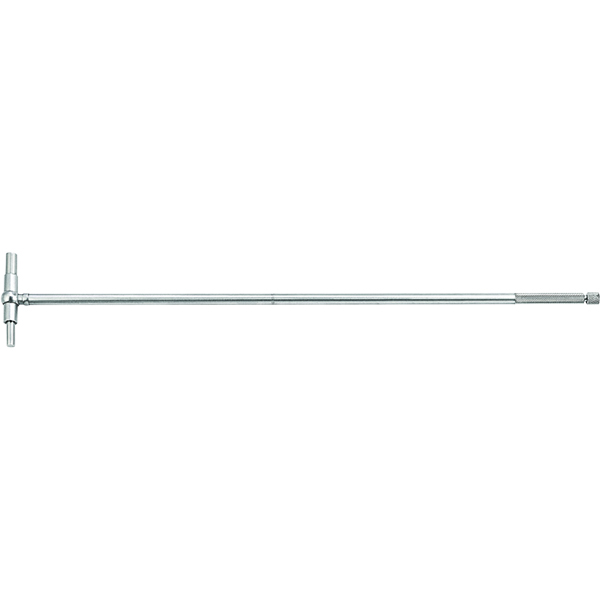

Features
- Precision Ground Radius on each gage provides two-point contact for maximum accuracy
- Greater range
- Constant spring tension gives uniform contact pressure
- Both plungers are easily locked at any desired setting
- Handles can be individually ordered. Handles longer than 12" (300mm) are available on special order.
- Handles are rigidly attached to the contact plungers and are automatically self-centering
- Ends of both contacts are hardened and ground to a radius to allow proper clearance on the smallest hole the gage will enter
- Two telescoping contacts
Product Specifications
| Range (in) | 1-1/4 - 2-1/8" |
| Range (mm) | 32-54mm |
| Handle Length (in) | 12" |
| Handle Length (mm) | 300mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Minimum Measurement (Inch):
1-1/4"
Minimum Measurement (Decimal Inch):
1.2500"
Minimum Measurement (mm):
32mm
Maximum Measurement (Inch):
2-1/8"
Maximum Measurement (Decimal inch):
2.1250"
Maximum Measurement (mm):
54mm
Handle Style:
Rigid
Material:
Steel
Finish/Coating:
Satin Chrome
Ships:
From Manufacturer
