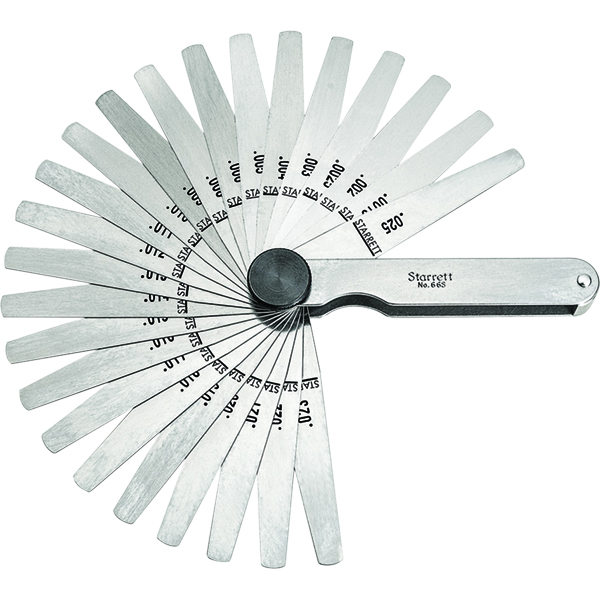

Features
- Carefully finished to correct thickness
- Individually tested and marked with thickness
- Leaves easily removed or replaced
- Rugged, substantial steel case protects leaves
- Tapered Leaves
- Leaves made of finest tempered-steel
- Locking device on most gages permits securely locking one or more leaves in position
Product Specifications
| Range (in) | .0015"-.025" |
| Number of Leaves | 26 |
| Size of Leaves (in) | 1/2"-1/4"x3"-1/32" |
| Thickness (in) | .0015-.025 |
| Leave Type | Tapered |
| Leaves | .0015, .002, .0025, .003 to .025 in .001 increments |
| Locking Device | Yes |
| Material | Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0015"
Minimum Measurement (mm):
0.04mm
Maximum Measurement (Inch):
1/32"
Maximum Measurement (Decimal Inch):
0.0250"
Maximum Measurement (mm):
0.50mm
Material:
Stainless Steel
Number of Leaves:
26
Leave Type:
Tapered
Ships:
From Manufacturer
