Features
- Angled head for better reading position
- Three dovetail positioning moutns work with existing test indicator accessories
- Large 1-3/8" (35mm) dial diameter
- Precision gear-driven design with smooth, jeweled movement
- Available with easy-to-read, white dial
- Narrow body for inreach ability
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Satin chrome finish for durability
- Contacts are frictionally adjustable and replaceable
- .0001" graduation, .020" range, 0-5-0 dial reading and carbide contact point of 13/16" (20mm) length and .078" (2mm) ball diameter, with attachments.
- Narrow body for inreach ability
- Satin chrome finish for durability
- Large 1-3/8" (35mm) dial diameter
- Include long carbide contacts 13/16" (20mm)

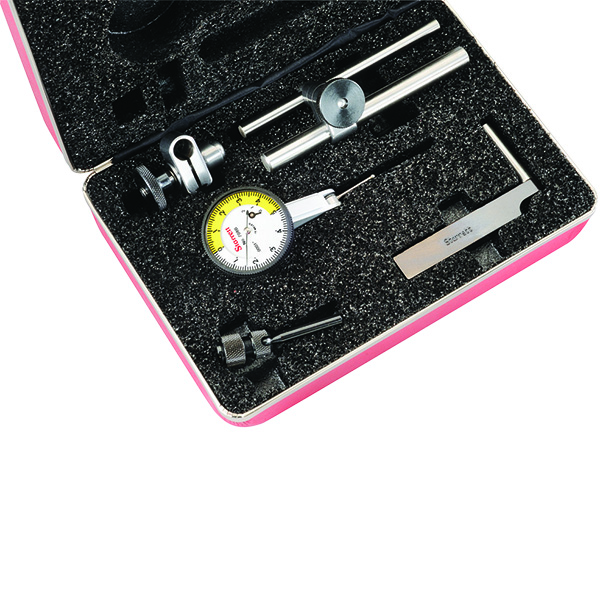

- Attachments include dovetail body clamp, tool post holder, swivel post snug with dovetail indicator clamp, and snug and rod unit
Product Specifications
| Range (in) | .020" |
| Graduations (in) | .0001" |
| Dial Reading | 0-5-0 |
| Attachments | With Attachments |
| Contact Point Ball Diameter (in) | .078" (2mm) |
| Contact Point Length (in) | 13/16" |
| Contact Point Length (mm) | 20mm |
| Dial Color | White |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0000"
Maximum Measurement (Inch):
1/64"
Maximum Measurement (Decimal Inch):
0.0200"
Dial Graduation (Inch):
0"
Dial Graduation (Decimal Inch):
0.0001"
Dial Reading:
0-5-0
Dial Diameter (Inch):
1-3/8"
Dial Diameter (Decimal Inch):
1.3751"
Dial Color:
White
Ships:
From Manufacturer
