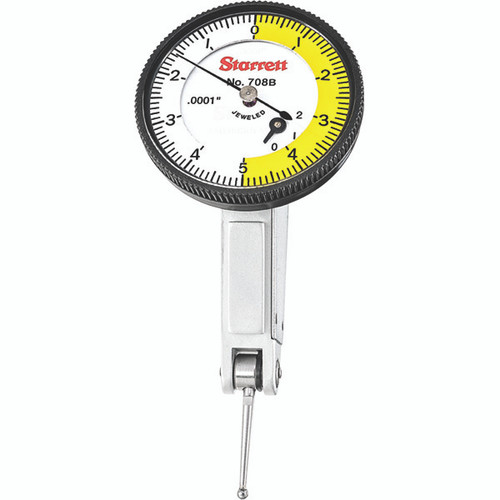

Starrett 708BZ | 0"-1/64" Range Dial Test Indicator 0.0001" Graduation White Dial

$508.00
Ships:
From Manufacturer
Brand:
Starrett
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0000"
Maximum Measurement (Inch):
1/64"
Maximum Measurement (Decimal Inch):
0.0200"
Dial Graduation (Inch):
0"
Dial Graduation (Decimal Inch):
0.0001"
Dial Reading:
0-5-0
Dial Diameter (Inch):
1-3/8"
Dial Diameter (Decimal Inch):
1.3751"
Dial Color:
White
Ships:
From Manufacturer
SKU:
30050736
UPC:
Weight:
0.11 LBS
Shipping:
Free Shipping
Starrett 708BZ | 0"-1/64" Range Dial Test Indicator 0.0001" Graduation White Dial
Features
  • These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
  • Three dovetail positioning mounts work with existing test indicator accessories
  • Precision gear-driven design with smooth, jeweled movement
  • Contact point reverses automatically, always maintaining clockwise hand rotation
  • Contacts are frictionally adjustable and replaceable
  • Revolution count hand for easy reading
  • Meet or exceed ISO accuracy specification
  • Inch reading indicators are available with easy-to-read, shaded white, red, or black dials - millimeter reading indicators with yellow dials
  • Angled head for better reading position
  • Narrow body for inreach ability
  • Satin chrome finish for durability
  • Large 1-3/8" (35mm) dial diameter
  • Include long carbide contacts 13/16" (20mm)
Product Specifications
Range (in) .020"
Graduations (in) .0001"
Dial Reading 0-5-0
Attachments Without Attachments
Contact Point Ball Diameter (in) .078" (2mm)
Contact Point Length (in) 13/16"
Contact Point Length (mm) 20mm
Dial Color White
