Features

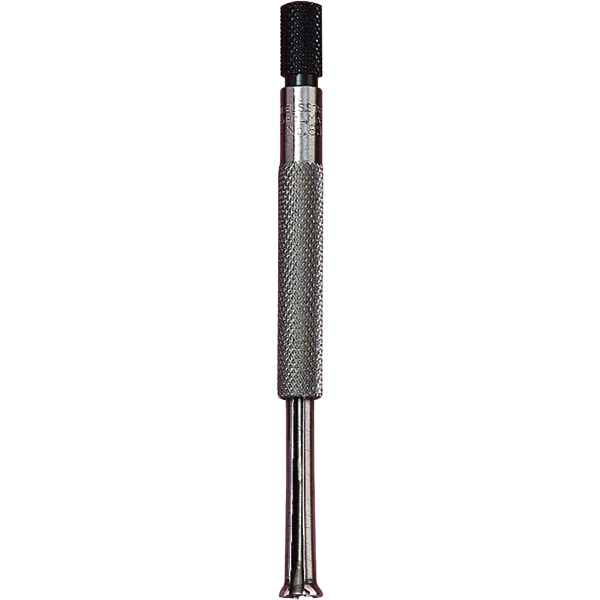

- Ideal for accurately measuring small holes, slots, grooves, and recesses
- Precision Ground Radius on each gage provides two-point contact for maximum accuracy
- Used for general work
- Permits use in shallow holes, slots, and recesses
- Well balanced
- More accurate measurements
- Hardened-ball measuring surface with two-point contact
- Half-ball with a flat bottom
- Smooth, sensitive adjustment
- Adjustment of the gage beyond their range is restricted by a safety stop that prevents breakage
Product Specifications
| Range (in) | .200-.300" |
| Range (mm) | 5.1-7.6mm |
| Length (in) | 3-1/8" |
| Length (mm) | 80mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Minimum Measurement (Inch):
13/64"
Minimum Measurement (Decimal Inch):
0.2000"
Minimum Measurement (mm):
5.10mm
Maximum Measurement (Inch):
19/64"
Maximum Measurement (Decimal Inch):
0.3000"
Maximum Measurement (mm):
7.60mm
Length (Inch):
3-1/8"
Length (Decimal Inch):
3.1496"
Length (mm):
80mm
Ships:
From Manufacturer
