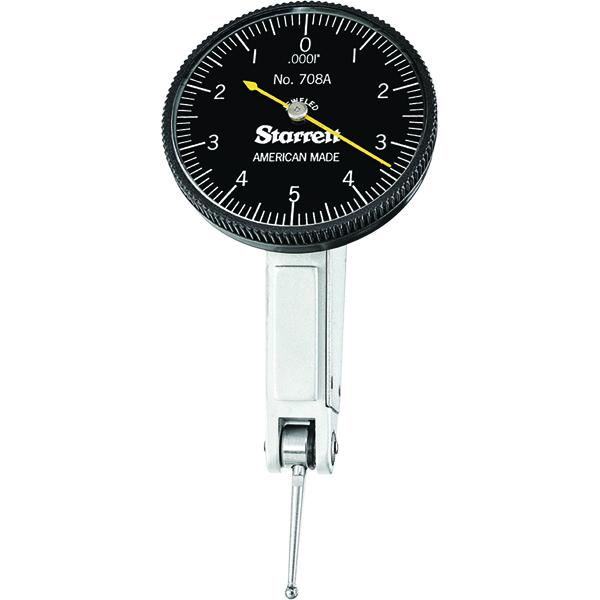

Features
- These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
- Three dovetail positioning mounts work with existing test indicator accessories
- Precision gear-driven design with smooth, jeweled movement
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Revolution count hand for easy reading
- Meet or exceed ISO accuracy specification
- Inch reading indicators are available with easy-to-read, shaded white, red, or black dials - millimeter reading indicators with yellow dials
- Angled head for better reading position
- Narrow body for inreach ability
- Satin chrome finish for durability
- Large 1-3/8" (35mm) dial diameter
- Include long carbide contacts 13/16" (20mm)
Product Specifications
Range (in) | .010" |
Graduations (in) | .0001" |
Dial Reading | 0-5-0 |
Attachments | Without Attachments |
Contact Point Ball Diameter (in) | .078" (2mm) |
Contact Point Length (in) | 13/16" |
Contact Point Length (mm) | 20mm |
Dial Color | Black |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0000"
Maximum Measurement (Inch):
1/64"
Maximum Measurement (Decimal Inch):
0.0100"
Dial Graduation (Inch):
0"
Dial Graduation (Decimal Inch):
0.0001"
Dial Reading:
0-5-0
Dial Diameter (Inch):
1-3/8"
Dial Diameter (Decimal Inch):
1.3751"
Dial Color:
Black
Ships:
From Manufacturer
