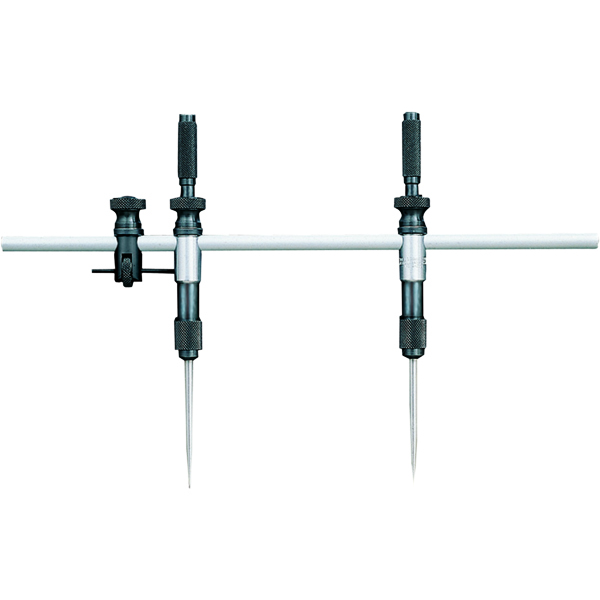

Features
- Rigid, well-designed
- The top of the beam is flattened so that when the trams are clamped in position, they will not turn from pressure on the points
- The 3" (75mm) points may be adjusted for length in the spring chucks and can be easily replaced with caliper legs or other attachments listed
- The ball points with 3" (75mm) holder permit working from holes up to 1-1/2" (38mm) in diameter
- A pair of 3" (75mm) caliper points is included with each trammel
- One tram has a fine-adjusting screw for the points
- Held in place by spring friction, which prevents them from sliding when the nuts are loosened for setting
- Each tram has a knurled swivel grip at the top that turns freely, making it very convenient to swing the tool when scribing circles
Product Specifications
| Maximum Dividing Range (in) | 9" |
| Maximum Dividing Range (mm) | 225mm |
| Maximum Scribing Diameter Range (in) | 18" |
| Maximum Scribing Diameter Range (mm) | 450mm |
| Beam Size (in) | 10-1/2" |
| Beam Size (mm) | 263mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Type:
Trammel
Material:
Steel
Number of Pieces:
4
Length (inch):
9"
Ships:
From Manufacturer
