Features
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2" (12.5mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2" (12.5mm) diameter
- Extensions available up to 6" (150mm) for deep hole measuring
- Setting rings included
- Depth stop/collar also available for .080"-.250" (1-6mm) range

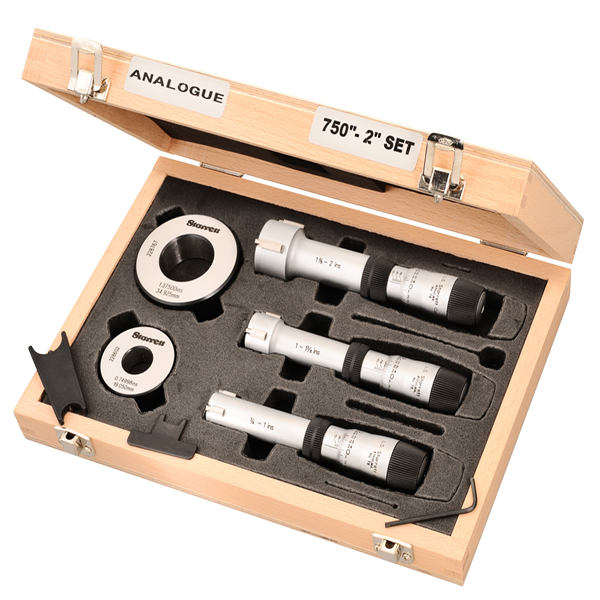

- Each micrometer bore gage is furnished in a case, complete with setting ring, contacts, wrenches, and instructions
Product Specifications
| Range (in) | 3/4 to 2" |
| Graduations (in) | 0.00025 |
| Approximate Measuring Depth (in) | 2-5/8 to 3-1/16" |
| Number of Heads | 3 |
| Number of Rings | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Type:
Inside Bore Gage Micrometer
Minimum Measurement (Inch):
3/4"
Minimum Measurement (Decimal Inch):
0.7500"
Maximum Measurement (Inch):
2"
Maximum Measurement (Decimal Inch):
2.0000"
Graduation (Inch):
0"
Graduation (Decimal Inch):
0.00025"
Gage Depth (Inch):
2-5/8 - 3-1/16"
Gage Depth (Decimal Inch):
3.0625"
Gage Depth (mm):
66.68mm - 77.79mm
Ships:
From Manufacturer
