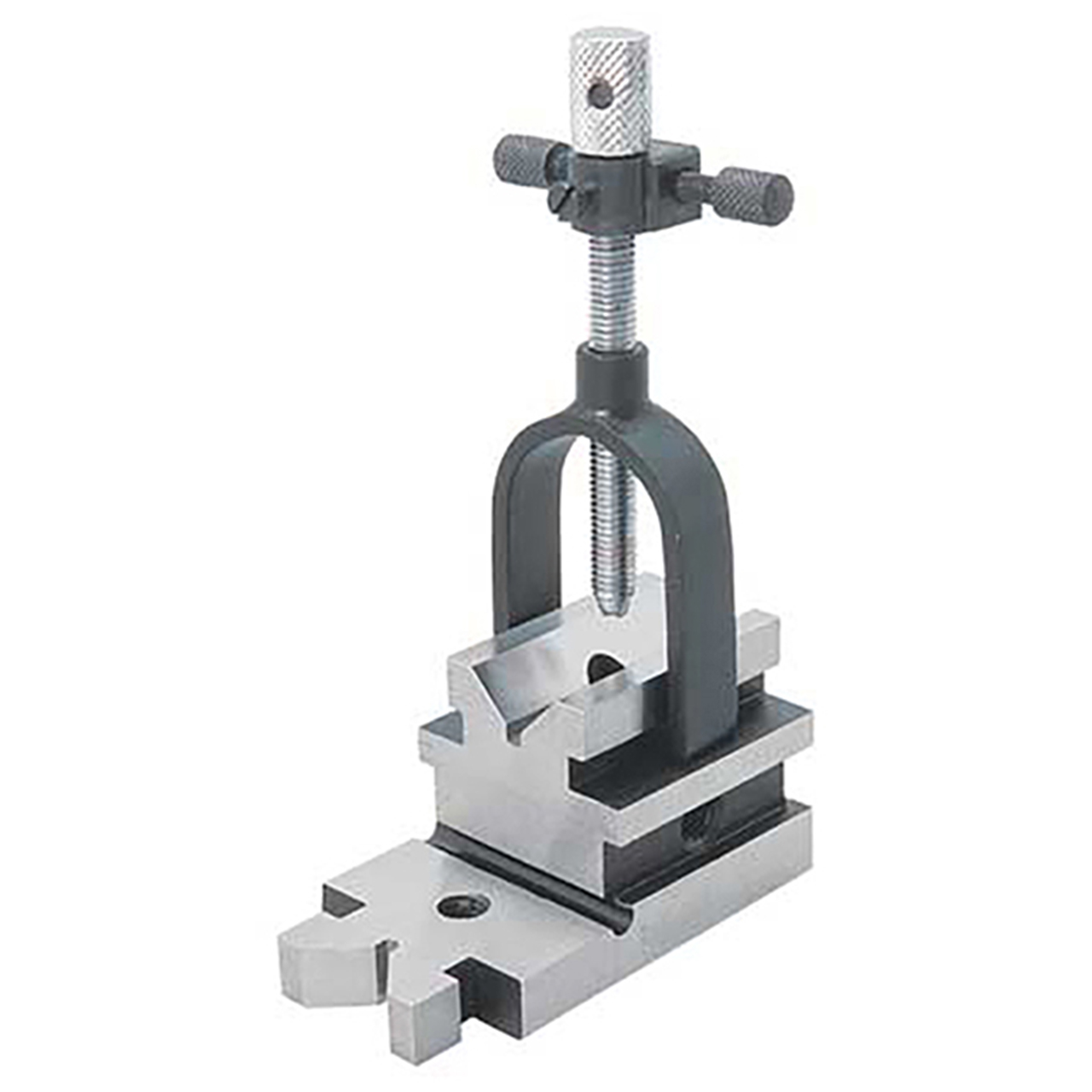

Manufactured from selected steel, Vee Blocks are fully hardened and ground. Adjustable side screw with cap in the clamp supports the block and prevents tilting. Four 3/8" - 16 tapped holes, two in the base and one on each side allow attachment to an angle iron which can then be attached to a lathe face plate or held by a magnetic chuck.
Product Specifications
| Manufacturer Part Number | 231082 |
| Sold As | Piece |
| Overall Length (Inch) | 3-19/32" |
| Overall Width (Inch) | 1-7/8" |
| Overall Height (Inch) | 1-7/8" |
| Maximum Capacity of V (Inch) | 1-5/16" |
| Magnetic | No |
| Material | Steel |
| Model Number | VB/S-48 |
| Product Type | V-Block |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
STM
Overall Length (Inch):
3-19/32"
Overall Length (Decimal Inch):
3.5937"
Overall Length (mm):
91.28mm
Overall Width (Inch):
1-7/8"
Overall Width (Decimal Inch):
1.8750"
Overall Width (mm):
47.63mm
Overall Height (Inch):
1-7/8"
Overall Height (Decimal Inch):
1.8750"
Overall Height (mm):
47.63mm
Maximum Capacity of V (Inch):
1-5/16"
Maximum Capacity of V (Decimal Inch):
1.3125"
Maximum Capacity of V (mm):
33.34mm
