Features

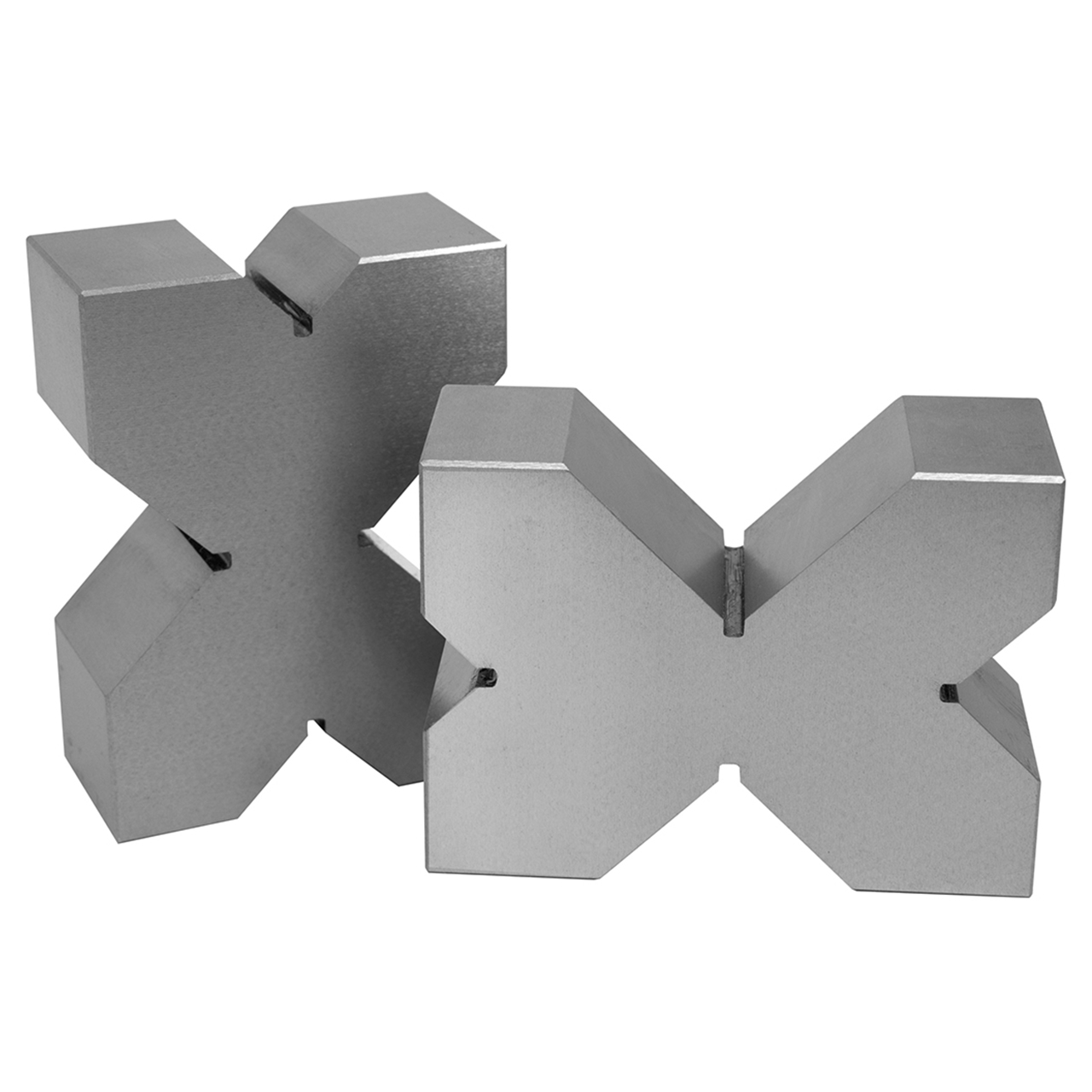

- Made from close grained cast iron, these Vee blocks are precisely ground and machined square and parallel.
- Each block incorporates four different sized Vee's thereby supporting a wide range of sizes
- Manufactured and supplied in matched and numbered pairs, these are very useful for marking and checking of cylindrical parts
- The larger sizes incorporate a cavity on either side for convenience in handling during usage
Product Specifications
| Manufacturer Part Number | 231116 |
| Sold As | Pair |
| Overall Length (mm) | 95mm |
| Overall Width (mm) | 35mm |
| Overall Height (mm) | 70mm |
| V Angle (Degree) | 90 Degree |
| Maximum Capacity of V (Inch) | 2" |
| Magnetic | No |
| Material | Cast Iron |
| Model Number | VB/QD/95-70-35 |
| Squareness Per 1 Inch (Decimal Inch) | 0.0012" |
| Product Type | V-Block |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
STM
Overall Width (Inch):
1-3/8"
Overall Width (Decimal Inch):
1.3779"
Overall Width (mm):
35.00mm
Overall Height (Inch):
2-3/4"
Overall Height (Decimal Inch):
2.7559"
Overall Height (mm):
70.00mm
V Angle:
90 Degree
Maximum Capacity of V (Inch):
2"
Maximum Capacity of V (Decimal Inch):
2.0000"
Maximum Capacity of V (mm):
50.80mm
