Features

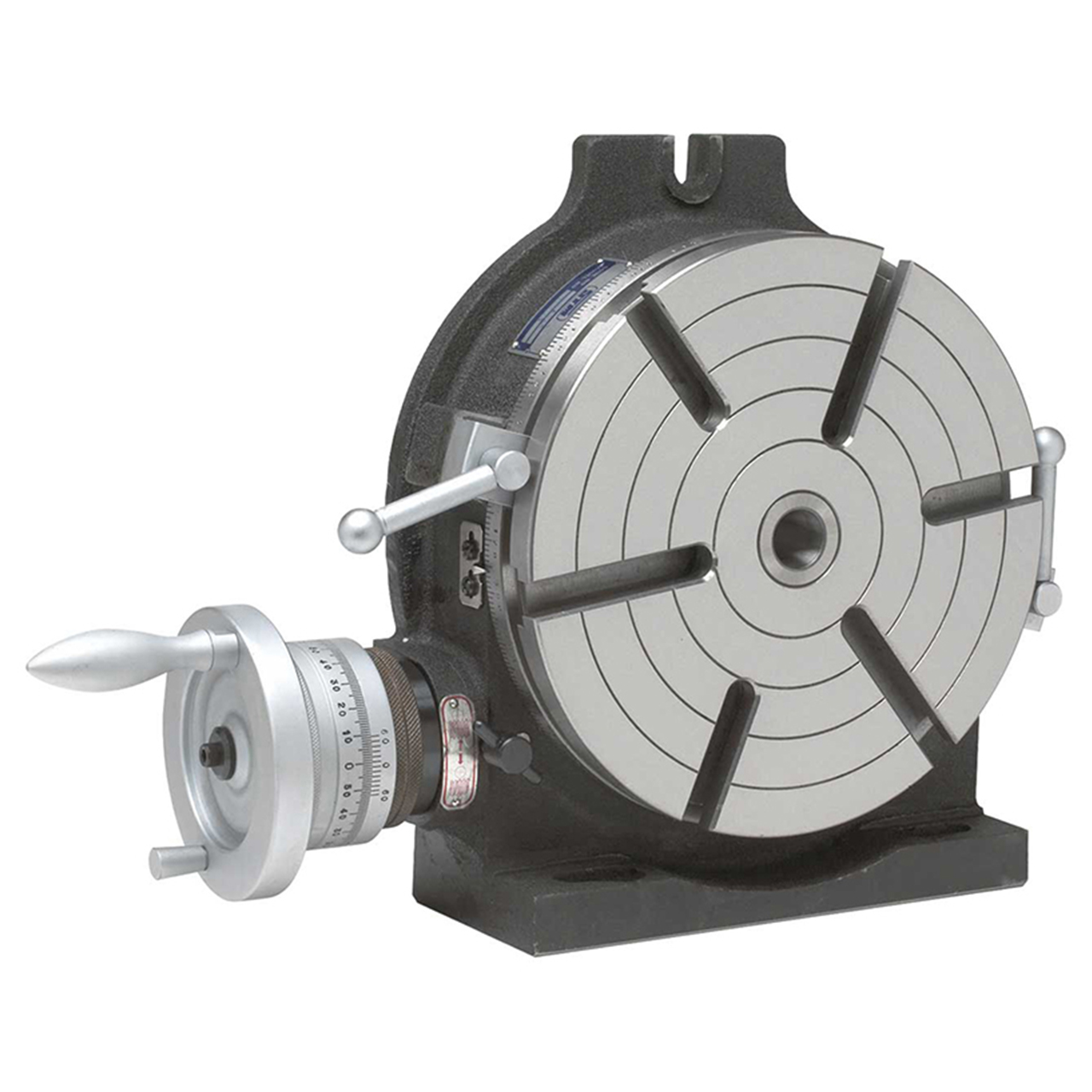

- This HV Type Rotary Table is so designed as to permit machining operations at a higher dimension than that of RT Type Rotary tables
- The base can be used in a vertical position to enable the carrying out of center work
- Worm gear is 90:1
Product Specifications
Manufacturer Part Number | 326515 | ||
Setting Position | Horizontal; Vertical | ||
Tilting | No | ||
Cross-Slide | No | ||
Table Diameter (Inch) | 12" | ||
T-Slot Width (Decimal Inch) | 0.63" | ||
Centerline Height (Decimal Inch) | 195" | ||
Overall Height (Decimal Inch) | 5.32" | ||
Model Number | HV-12 | ||
Center Taper | MT4 | Product Type | Horizontal/Vertical Rotary and Dividing Table |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
STM
Height (Inch):
5-5/16"
Height (Decimal Inch):
5.3200"
Height (mm):
135.13mm
Width (Inch):
5/8"
Width (Decimal Inch):
0.6300"
Width (mm):
16.00mm
Diameter (Inch):
12"
Diameter (Decimal Inch):
12.0000"
Diameter (mm):
304.80mm
