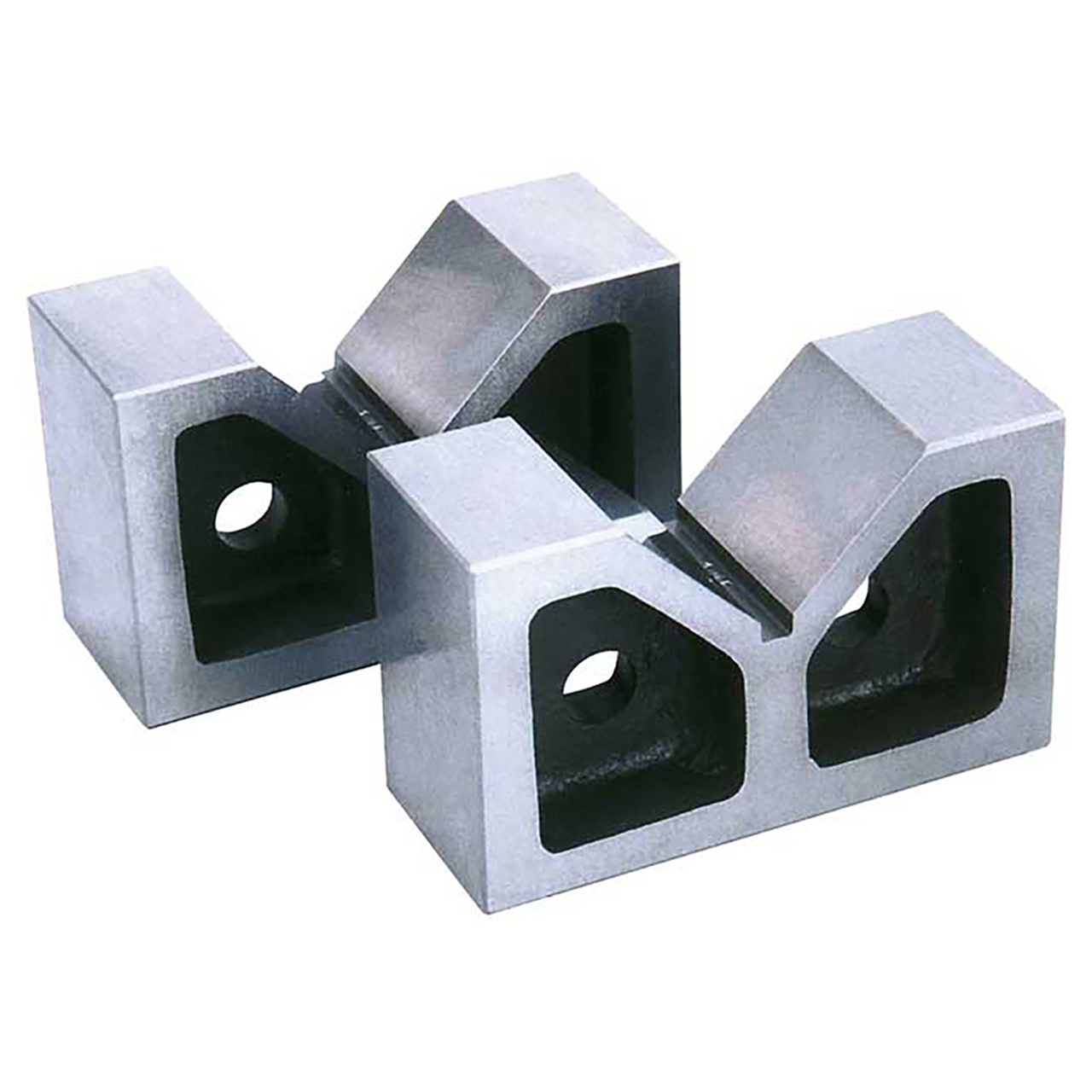

STM 370561 | 3" OAL x 2-5/8" Width V-Block

$43.42
Brand:
STM
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Overall Width (Inch):
2-5/8"
Overall Width (Decimal Inch):
2.6250"
Overall Width (mm):
66.68mm
Overall Height (Inch):
2-3/8"
Overall Height (Decimal Inch):
2.3750"
Overall Height (mm):
60.33mm
V Angle:
90 Degree
SKU:
30122730
Weight:
3.25 LBS
Shipping:
Calculated at Checkout

Supplied in matched and numbered pairs, these vee blocks and manufactured from high quality castings, properly seasoned against distortion, and are accurately machined square and parallel. The 90 degree vee is centered in true.


Product Specifications
Manufacturer Part Number370561
Sold AsPair
Overall Length (Inch)3"
Overall Width (Inch)2-5/8"
Overall Height (Inch)2-3/8"
V Angle (Degree)90 Degree
MagneticNo
MaterialCast Iron
Model NumberE110-3"
Product TypeV-Block
