For Autoblock, Howa, Kitagawa, Matsumoto, Shunk.

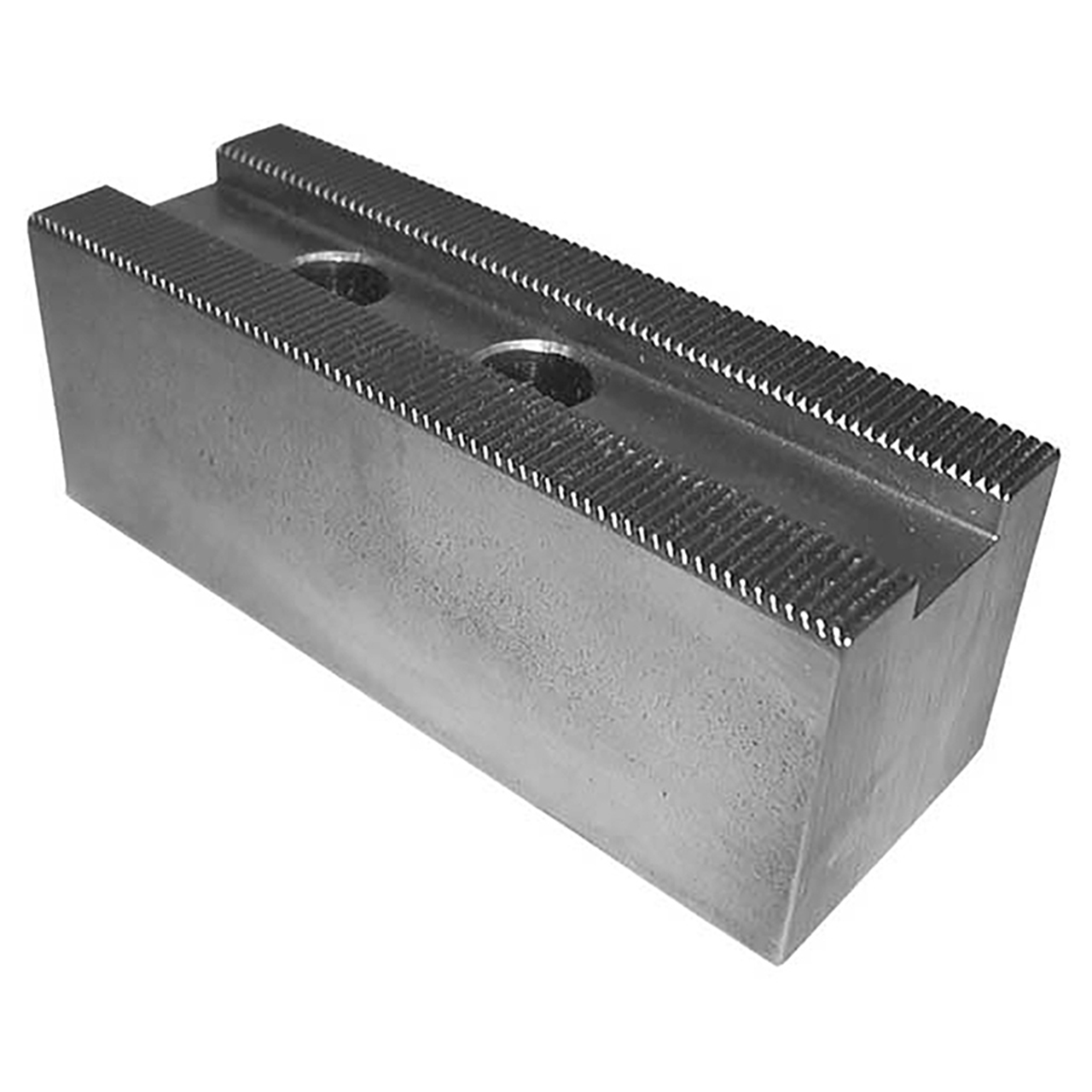

Product Specifications
| Manufacturer Part Number | 491586 |
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5x60 Degree |
| Maximum Compatible Chuck Diameter (Inch) | 15" |
| Minimum Compatible Chuck Diameter (Inch) | 15" |
| Minimum Compatible Chuck Diameter (mm) | 381mm |
| Overall Height (mm) | 60mm |
| Groove Width (mm) | 22mm |
| Distance Between Mount Hole Centers (mm) | 43mm |
| Number of Jaws | 3 |
| Model Number | HKM.38.00/S |
| Fastener Size (mm) | 21mm |
| Overall Length (mm) | 155mm |
| Product Type | Soft Lathe Chuck Jaw |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
STM
Height (Inch):
2-23/64"
Height (Decimal Inch):
2.3622"
Height (mm):
60.00mm
Width (Inch):
55/64"
Width (Decimal Inch):
0.8661"
Width (mm):
22.00mm
