Product Specifications

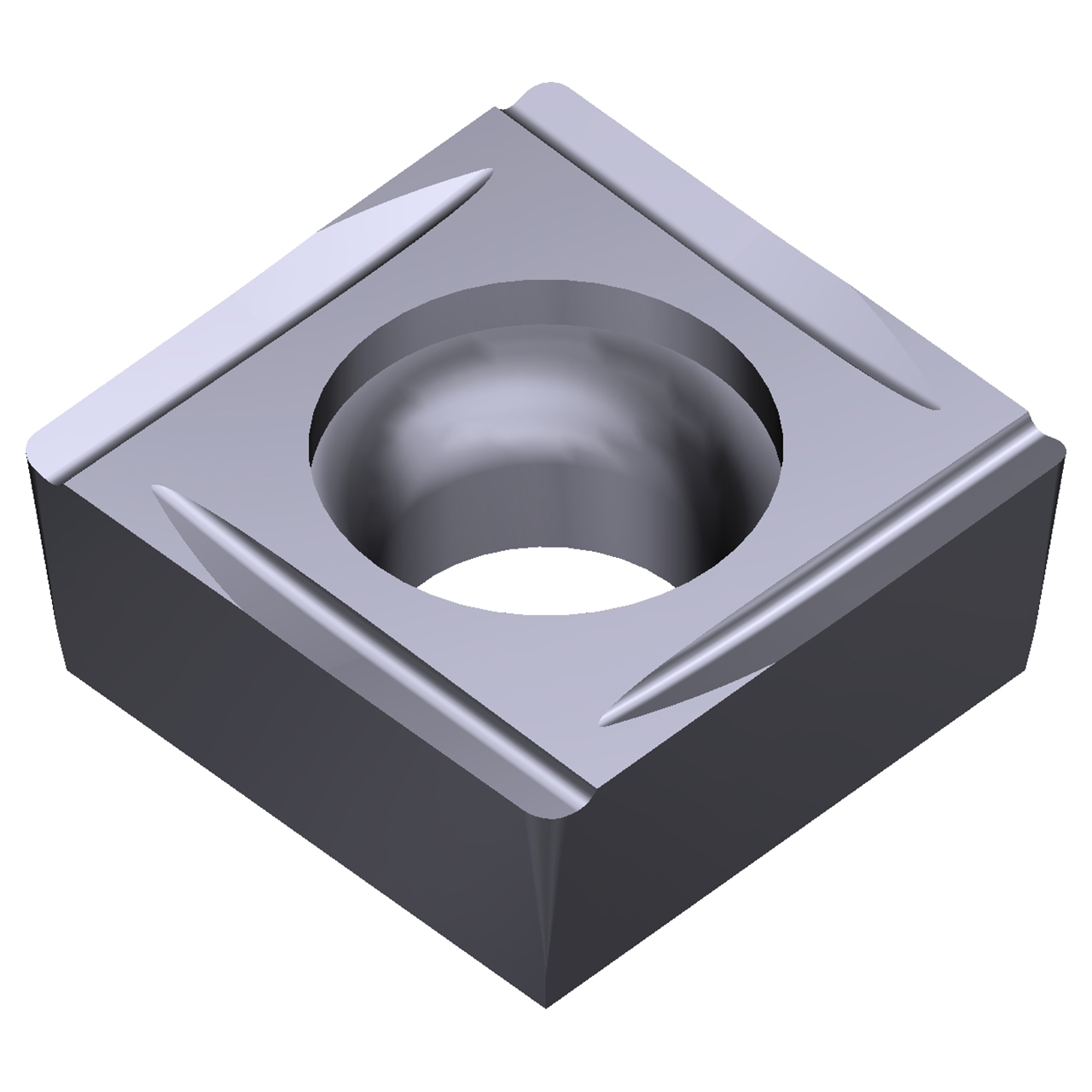

| EDP Number | 10T5ADA |
| Product Code-ANSI | SCGT32.50.5LFX-AC5015S |
| Product Code-ISO | SCGT09T302L-FX |
| Manufacturer Grade Identification | AC5015S |
| Series | AC5000S |
| Cutting Edge Length (Decimal Inch) | 0.3750" |
| Cutting Edge Length (mm) | 9.53mm |
| Nose Radius (Decimal Inch) | 0.0079" |
| Nose Radius (mm) | 0.20mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.3750" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Hole Diameter (mm) | 4.40mm |
| Insert Thickness (Decimal Inch) | 0.1563" |
| Insert Thickness (mm) | 3.97mm |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | G |
| Chip Breaker | LFX |
| Corner Angle | 90 |
| Insert Style | SCGT |
| Secondary Workpiece Material | Stainless Steel |
| Primary Workpiece Material | Heat Resistant Alloy |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | S15, S10, S20 |
| Insert Holding Method | Screw-On |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
SCGT
Insert Size:
32.50.5
Material:
Carbide
Length (Inch):
3/8"
Length (Decimal Inch):
0.3750"
Length (mm):
9.53mm
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.53mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0079"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
AC5015S
interval quantity:
10
Ships:
From California in 1-2 Days
