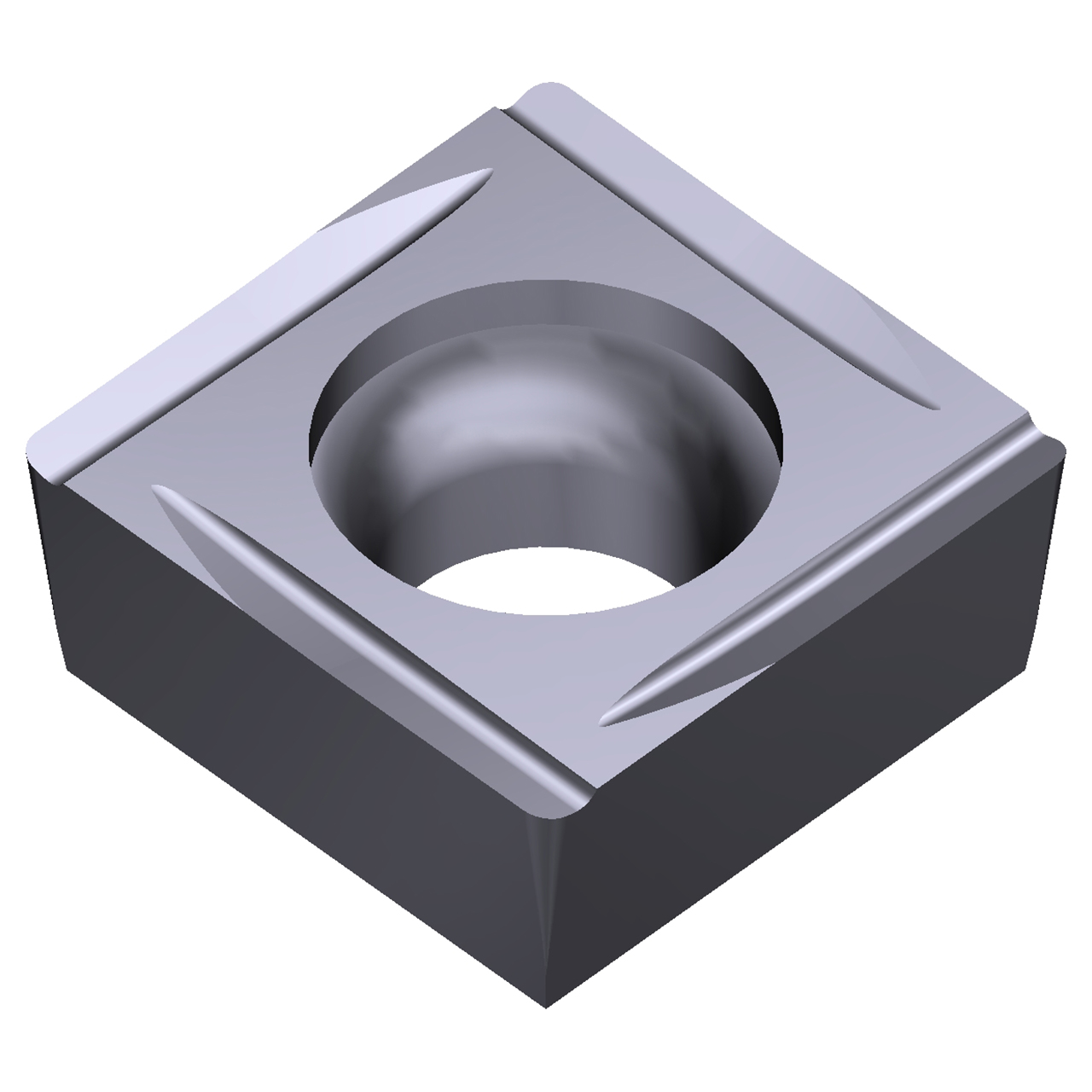

Sumitomo 10T6ADE | SCGT431LFX-AC5025S 0.5000" Circle Diameter x 5.16mm Hole Diameter x 0.0157" Radius Absotech Coated Carbide Turning Insert

$12.47 $11.22
(You save $1.25)
Total Price: $112.20

This product is sold in increments of 10

Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
SCGT
Insert Size:
431
Material:
Carbide
Length (Inch):
1/2"
Length (Decimal Inch):
0.5000"
Length (mm):
12.70mm
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
AC5025S
Ships:
From California in 1-2 Days
SKU:
23167238
Weight:
0.25 LBS
Shipping:
Free Shipping

Product Specifications
EDP Number10T6ADE
Product Code-ANSISCGT431LFX-AC5025S
Product Code-ISOSCGT120404L-FX
Manufacturer Grade IdentificationAC5025S
SeriesAC5000S
Cutting Edge Length (Decimal Inch)0.5000"
Cutting Edge Length (mm)12.70mm
Nose Radius (Decimal Inch)0.0157"
Nose Radius (mm)0.40mm
Inscribed Circle Diameter (Decimal Inch)0.5000"
Inscribed Circle Diameter (mm)12.70mm
Hole Diameter (mm)5.16mm
Insert Thickness (Decimal Inch)0.1874"
Insert Thickness (mm)4.76mm
Relief Angle7 Degree
Rake AnglePositive
Insert MaterialCarbide
Tolerance ClassG
Chip BreakerLFX
Corner Angle90
Insert StyleSCGT
Secondary Workpiece MaterialStainless Steel
Primary Workpiece MaterialHeat Resistant Alloy
CoatingAbsotech
Coating ProcessPVD
Standard Designation of the Grade, Main ApplicationS15, S10, S20
Insert Holding MethodScrew-On
