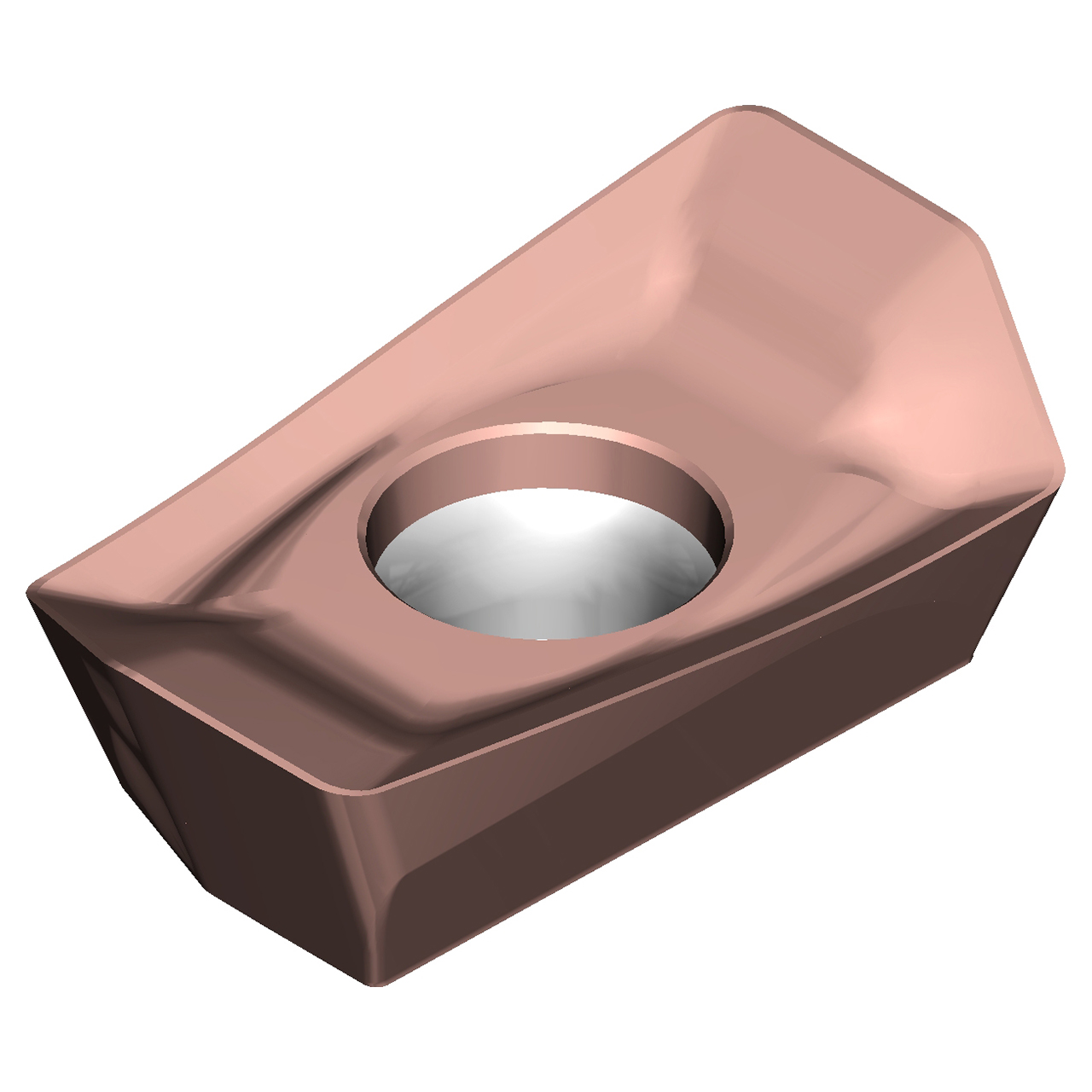

Sumitomo 14U2AKR| AOMT170508PEER-G-ACU2500 15.00mm Maximum Depth Cut x 0.80mm Radius x 5.50mm Thickness Carbide ACU2500 Coated WEZ Milling Insert

$18.83 $15.06
(You save $3.77)
Brand:
Sumitomo
Insert Style:
AOMT
Insert Size:
1705
Material:
Carbide
Manufacturer's Grade:
ACU2500
Finish/Coating:
ACU2500
Width (Inch):
3/4"
Width (Decimal Inch):
0.7677"
Width (mm):
19.50mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.2165"
Thickness (mm):
5.50mm
interval quantity:
10
Merchandising Boost Rule:
Yes
SKU:
23168691
UPC:
Weight:
0.25 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Sumitomo 14U2AKR| AOMT170508PEER-G-ACU2500 15.00mm Maximum Depth Cut x 0.80mm Radius x 5.50mm Thickness Carbide ACU2500 Coated WEZ Milling Insert

Product Specifications
EDP Number 14U2AKR
Product Code-ANSI AOMT170508PEER-G-ACU2500
Manufacturer Grade Identification ACU2500
Series WEZ
Maximum Depth of Cut (mm) 15.00mm
Cutting Edge Length (Decimal Length) 0.7677"
Cutting Edge Length (mm) 19.50mm
Nose Radius (Decimal Inch) 0.0315"
Nose Radius (mm) 0.80mm
Insert Thickness (Decimal Inch) 0.2165"
Insert Thickness (mm) 5.50mm
Coating ACU2500
Coating Process PVD
Insert Style AOMT
Insert Side Single
Insert Size 1705
Chip Breaker G
Tolerance Class M
Insert Hand R
Insert Material Carbide
