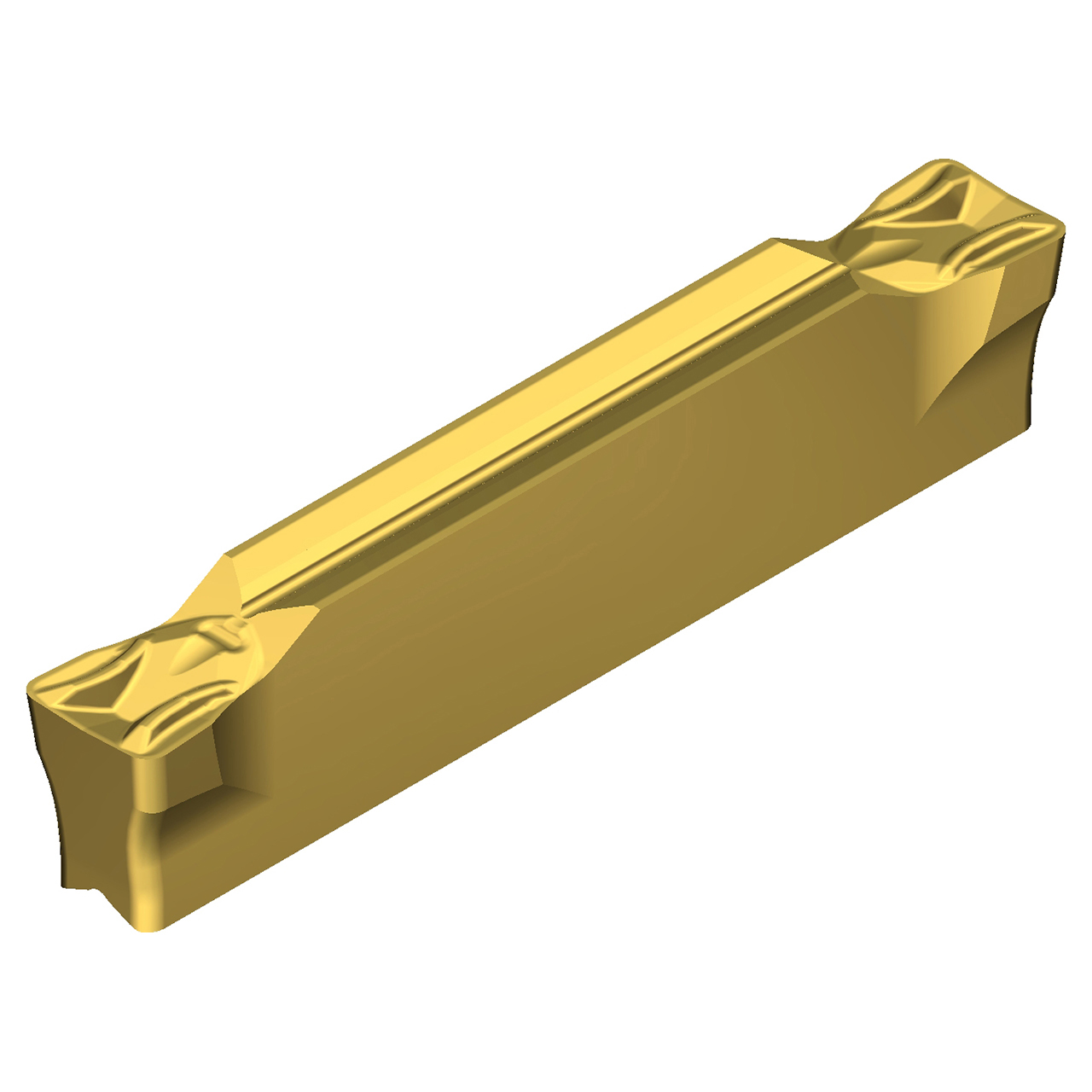

Sumitomo 186PALV | GCMN3004-MG-AC425K 0.1181" Cutting Width x 0.0157" Radius x 0.1496" Thickness Super FF Coat Coated Carbide GND Grooving Insert

$25.80 $20.64
(You save $5.16)
Brand:
Sumitomo
Material:
Carbide
Cutting Width (Inch):
1/8"
Cutting Width (Decimal Inch):
0.1181"
Cutting Width (mm):
3.00mm
Maximum Depth of Cut (Inch):
3/4"
Maximum Depth of Cut (Decimal Inch):
0.7500"
Maximum Depth of Cut (mm):
20.00mm
Manufacturer's Grade:
AC425K
Coating:
Super FF Coat
Insert Hand:
N
Cutting Height (Inch):
5/32"
Cutting Height (Decimal Inch):
0.1496"
Cutting Height (mm):
3.80mm
interval quantity:
1
SKU:
23172094
UPC:
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Sumitomo 186PALV | GCMN3004-MG-AC425K 0.1181" Cutting Width x 0.0157" Radius x 0.1496" Thickness Super FF Coat Coated Carbide GND Grooving Insert

Product Specifications
EDP Number186PALV
Product Code - ANSIGCMN3004-MG-AC425K
Manufacturer Grade IdentificationAC425K
SeriesGND
Maximum Depth of Cut (Decimal Inch)0.7500"
Maximum Depth of Cut (mm)20.00mm
Cutting Width (Decimal Inch)0.1181"
Cutting Width (mm)3.00mm
Height (Decimal Inch)0.1496"
Nose Radius (Decimal Inch)0.0157"
Nose Radius (mm)0.40mm
Insert Thickness (Decimal Inch)0.1496"
Insert Thickness (mm)3.80mm
Relief Angle7 Degree
CoatingSuper FF Coat
Coating ProcessCVD
Standard Designation of the Grade, Main ApplicationK
Primary Workpiece MaterialK
Secondary Workpiece MaterialK
Chip BreakerMG
Insert HandN
Insert MaterialCarbide
