Product Specifications

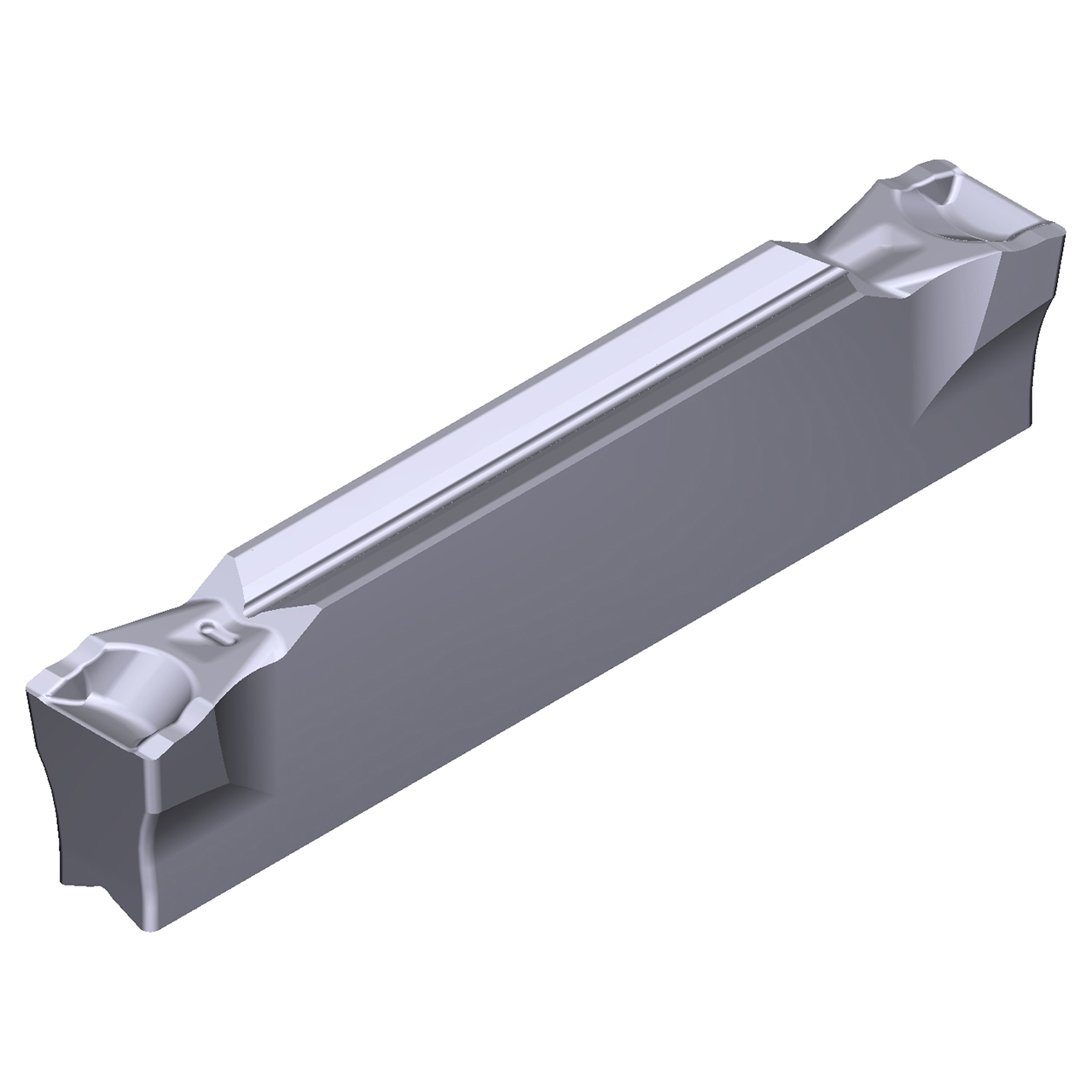

| EDP Number | 18T6AQS |
| Product Code - ANSI | GCMN4004-GL-AC5025S |
| Manufacturer Grade Identification | AC5025S |
| Series | GND |
| Maximum Depth of Cut (Decimal Inch) | 1.0000" |
| Maximum Depth of Cut (mm) | 25.00mm |
| Cutting Width (Decimal Inch) | 0.1575" |
| Cutting Width (mm) | 4.00mm |
| Height (Decimal Inch) | 0.1575" |
| Nose Radius (Decimal Inch) | 0.0157" |
| Nose Radius (mm) | 0.40mm |
| Insert Thickness (Decimal Inch) | 0.1575" |
| Insert Thickness (mm) | 4.00mm |
| Relief Angle | 7 Degree |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | P, M, S |
| Primary Workpiece Material | P, M, S |
| Secondary Workpiece Material | P, M, S |
| Chip Breaker | GL |
| Insert Hand | N |
| Insert Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Material:
Carbide
Cutting Width (Inch):
5/32"
Cutting Width (Decimal Inch):
0.1575"
Cutting Width (mm):
4.00mm
Maximum Depth of Cut (Inch):
1"
Maximum Depth of Cut (Decimal Inch):
1.0000"
Maximum Depth of Cut (mm):
25.00mm
Manufacturer's Grade:
AC5025S
Coating:
Absotech
Insert Hand:
N
Cutting Height (Inch):
5/32"
Cutting Height (Decimal Inch):
0.1575"
Cutting Height (mm):
4.00mm
interval quantity:
5
Ships:
From California in 1-2 Days
