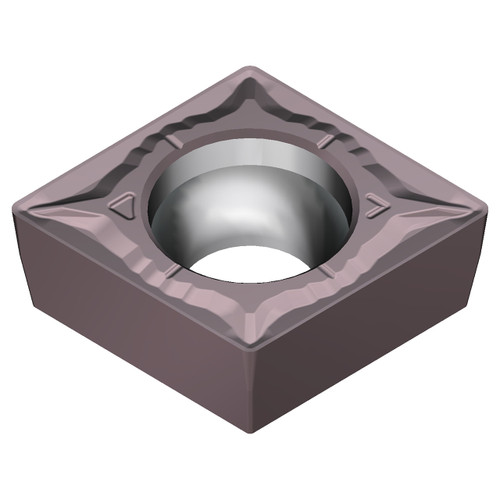

Sumitomo 196DDCJ | CCMT21.51EGU-AC6040M 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0157" Radius Absotech Coated Carbide Turning Insert

$7.39 $6.65
(You save $0.74)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
CCMT
Insert Size:
21.51
Material:
Carbide
Length (Inch):
1/4"
Length (Decimal Inch):
0.2520"
Length (mm):
6.40mm
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
AC6040M
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23175185
Weight:
0.10 LBS
Shipping:
Calculated at Checkout
Sumitomo 196DDCJ | CCMT21.51EGU-AC6040M 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0157" Radius Absotech Coated Carbide Turning Insert

Product Specifications
EDP Number196DDCJ
Product Code-ANSICCMT21.51EGU-AC6040M
Product Code-ISOCCMT060204N-GU
Manufacturer Grade IdentificationAC6040M
SeriesAC6000M
Cutting Edge Length (Decimal Inch)0.2520"
Cutting Edge Length (mm)6.40mm
Nose Radius (Decimal Inch)0.0157"
Nose Radius (mm)0.40mm
Inscribed Circle Diameter (Decimal Inch)0.2500"
Inscribed Circle Diameter (mm)6.35mm
Hole Diameter (mm)2.80mm
Insert Thickness (Decimal Inch)0.0937"
Insert Thickness (mm)2.38mm
Relief Angle7 Degree
Rake AnglePositive
Insert MaterialCarbide
Tolerance ClassM
Chip BreakerEGU
Corner Angle80
Insert StyleCCMT
Primary Workpiece MaterialStainless Steel
CoatingAbsotech
Coating ProcessPVD
Standard Designation of the Grade, Main ApplicationM40, M30, M30
Insert Holding MethodScrew-On
