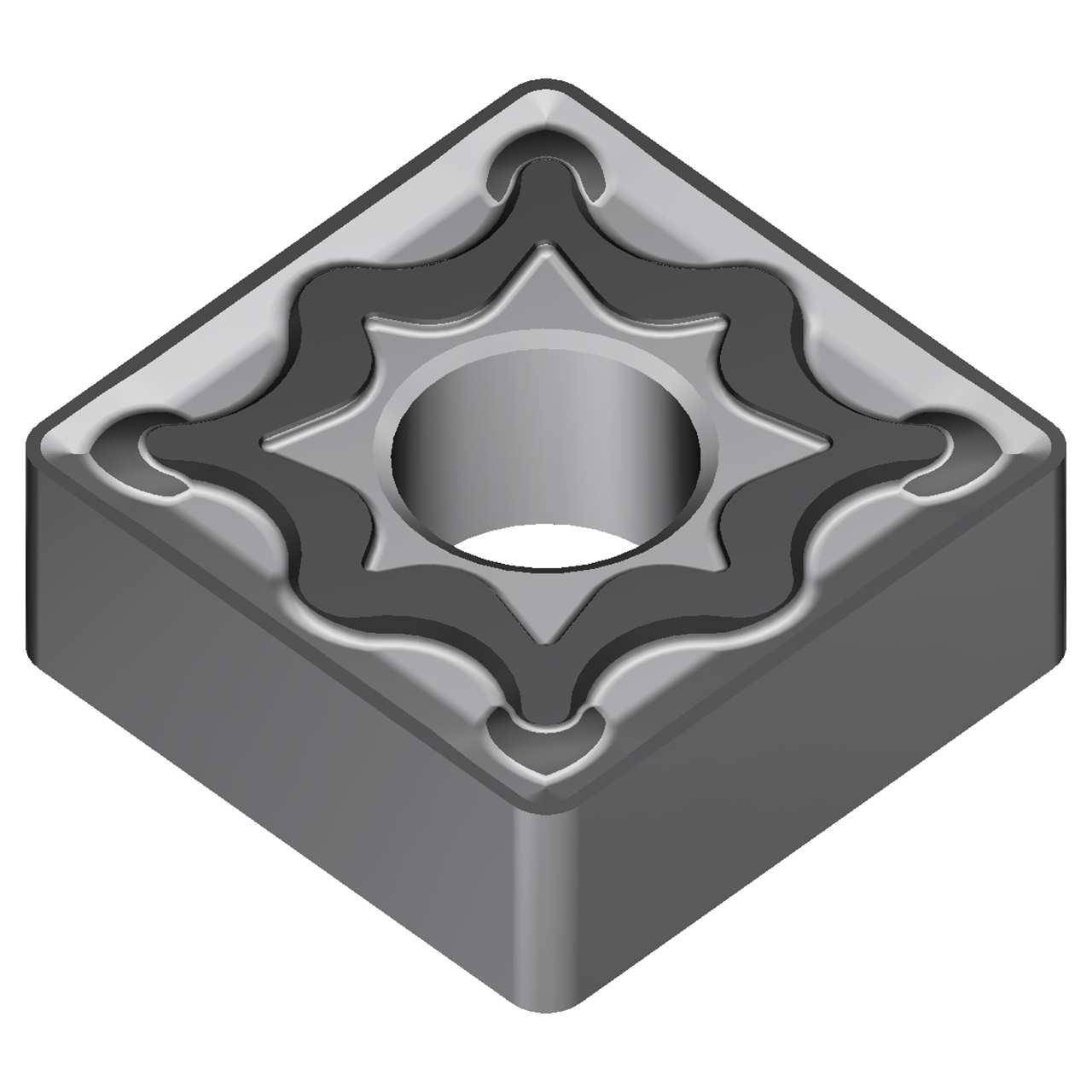

Sumitomo 19P7AVS | SNMG432EUX-AC8025P 0.5000" Circle Diameter x 5.16mm Hole Diameter x 0.0315" Radius Absotech Coated Carbide Turning Insert

$10.24 $9.22
(You save $1.02)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
SNMG
Insert Size:
432
Material:
Carbide
Length (Inch):
1/2"
Length (Decimal Inch):
0.5000"
Length (mm):
12.70mm
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
AC8025P
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23177189
Weight:
0.25 LBS
Shipping:
Free Shipping

Product Specifications
EDP Number19P7AVS
Product Code-ANSISNMG432EUX-AC8025P
Product Code-ISOSNMG120408N-UX
Manufacturer Grade IdentificationAC8025P
SeriesAC8000P
Cutting Edge Length (Decimal Inch)0.5000"
Cutting Edge Length (mm)12.70mm
Nose Radius (Decimal Inch)0.0315"
Nose Radius (mm)0.80mm
Inscribed Circle Diameter (Decimal Inch)0.5000"
Inscribed Circle Diameter (mm)12.70mm
Hole Diameter (mm)5.16mm
Insert Thickness (Decimal Inch)0.1874"
Insert Thickness (mm)4.76mm
Relief Angle0 Degree
Rake AngleNegative
Insert MaterialCarbide
Tolerance ClassM
Chip BreakerEUX
Corner Angle90
Insert StyleSNMG
Primary Workpiece MaterialSteel
CoatingAbsotech
Coating ProcessCVD
Standard Designation of the Grade, Main ApplicationP25, P30, P20
Insert Holding MethodPin & Clamp
