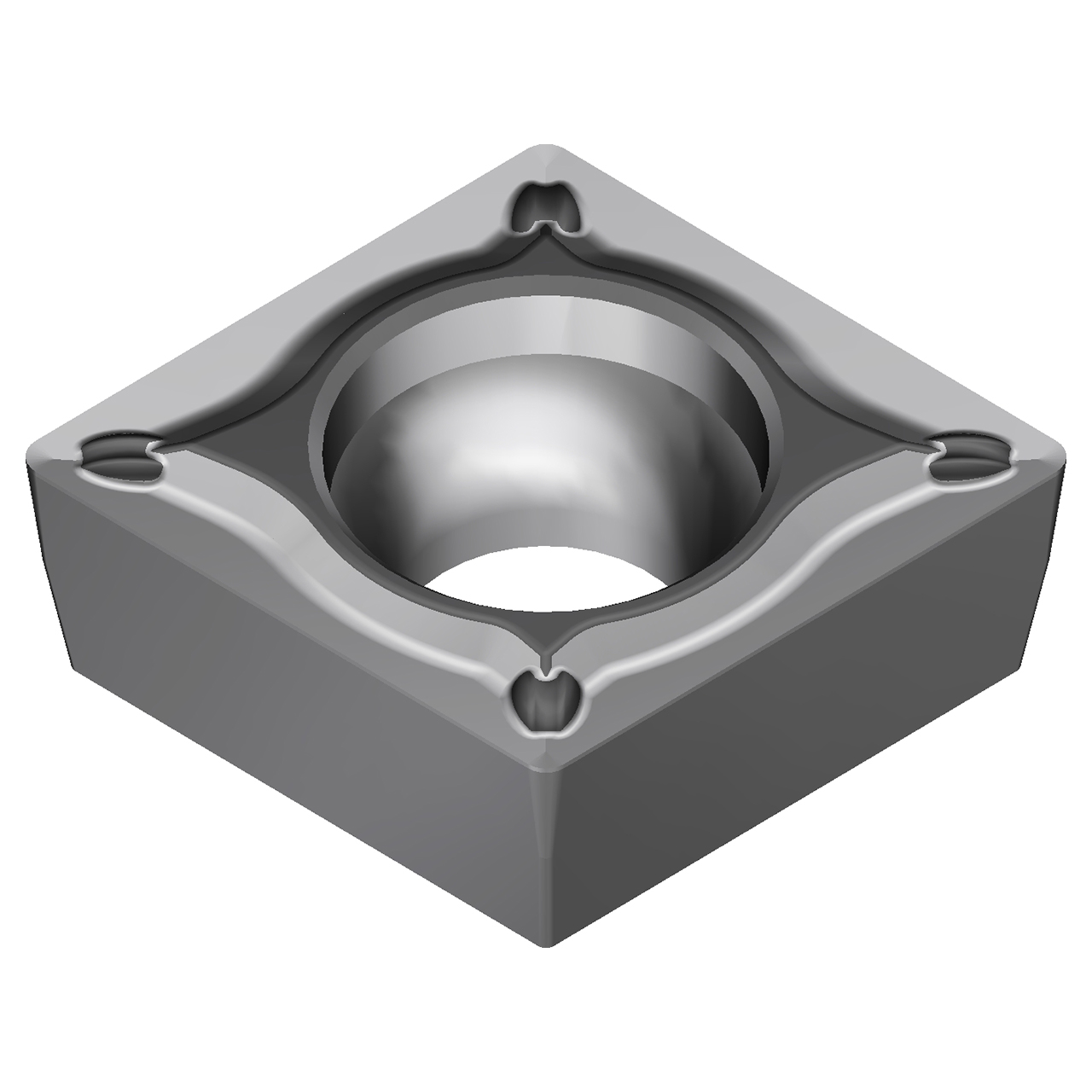

Sumitomo 19P7W3P | CPMT32.51ESU-AC8025P 0.3750" Circle Diameter x 4.40mm Hole Diameter x 0.0157" Radius Absotech Coated Carbide Turning Insert

$9.58 $8.62
(You save $0.96)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
CPMT
Insert Size:
32.51
Material:
Carbide
Length (Inch):
3/8"
Length (Decimal Inch):
0.3819"
Length (mm):
9.70mm
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.53mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
AC8025P
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23177737
Weight:
0.12 LBS
Shipping:
Free Shipping

Product Specifications
EDP Number19P7W3P
Product Code-ANSICPMT32.51ESU-AC8025P
Product Code-ISOCPMT09T304N-SU
Manufacturer Grade IdentificationAC8025P
SeriesAC8000P
Cutting Edge Length (Decimal Inch)0.3819"
Cutting Edge Length (mm)9.70mm
Nose Radius (Decimal Inch)0.0157"
Nose Radius (mm)0.40mm
Inscribed Circle Diameter (Decimal Inch)0.3750"
Inscribed Circle Diameter (mm)9.53mm
Hole Diameter (mm)4.40mm
Insert Thickness (Decimal Inch)0.1252"
Insert Thickness (mm)3.18mm
Relief Angle11 Degree
Rake AnglePositive
Insert MaterialCarbide
Tolerance ClassM
Chip BreakerESU
Corner Angle80
Insert StyleCPMT
Primary Workpiece MaterialSteel
CoatingAbsotech
Coating ProcessCVD
Standard Designation of the Grade, Main ApplicationP25, P30, P20
Insert Holding MethodScrew-On
