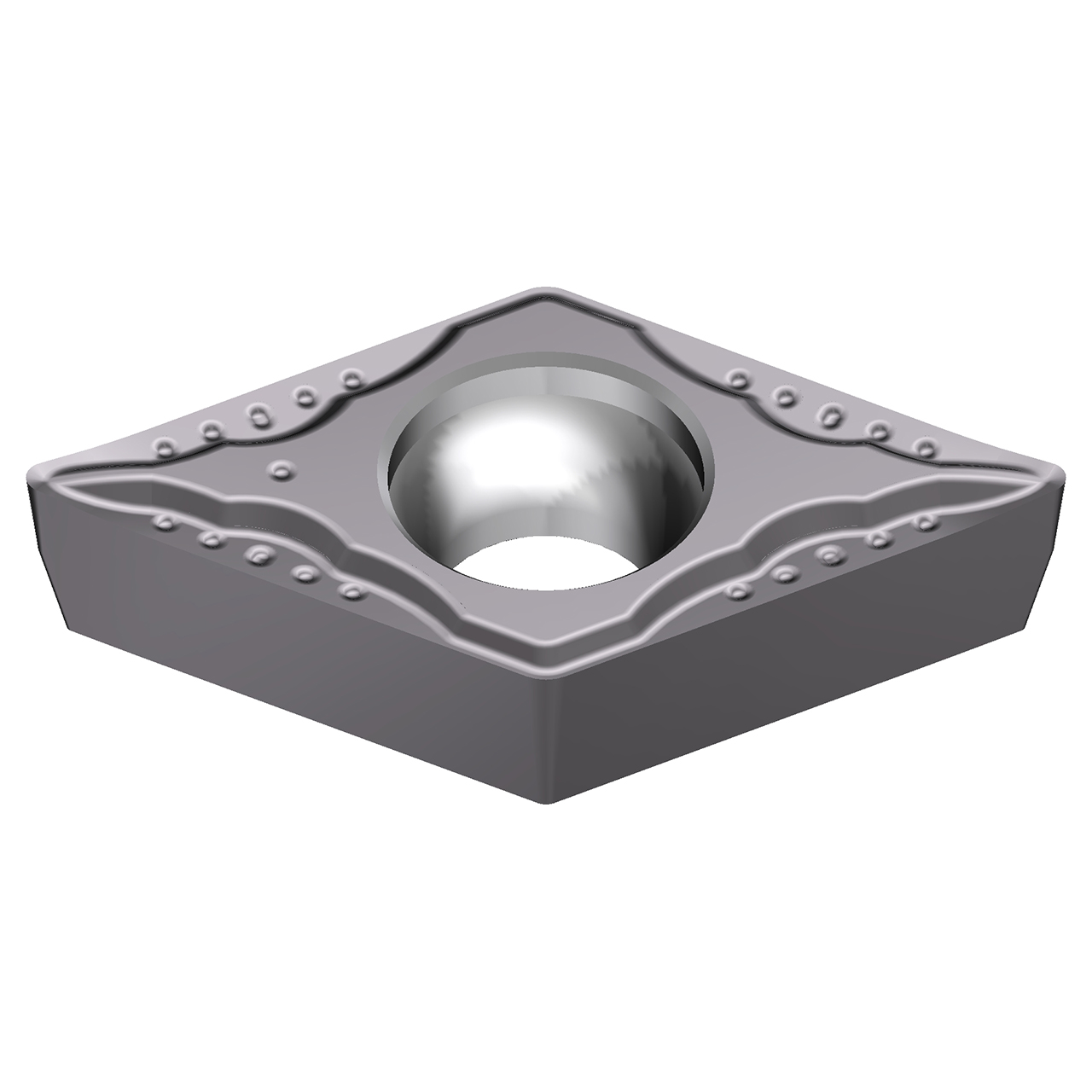

Sumitomo 1NR4012 | DCGT32.50.5MESI-AC1030U 0.3750" Circle Diameter x 4.40mm Hole Diameter x 0.0079" Radius Absotech Coated Carbide Turning Insert

$14.04 $12.64
(You save $1.40)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
DCGT
Insert Size:
32.50.5
Material:
Carbide
Length (Inch):
15/32"
Length (Decimal Inch):
0.4567"
Length (mm):
11.60mm
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.53mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0079"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
AC1030U
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23184184
Weight:
0.12 LBS
Shipping:
Free Shipping
Sumitomo 1NR4012 | DCGT32.50.5MESI-AC1030U 0.3750" Circle Diameter x 4.40mm Hole Diameter x 0.0079" Radius Absotech Coated Carbide Turning Insert

Product Specifications
EDP Number1NR4012
Product Code-ANSIDCGT32.50.5MESI-AC1030U
Product Code-ISODCGT11T302MN-SI
Manufacturer Grade IdentificationAC1030U
SeriesAC1030U
Cutting Edge Length (Decimal Inch)0.4567"
Cutting Edge Length (mm)11.60mm
Nose Radius (Decimal Inch)0.0079"
Nose Radius (mm)0.20mm
Inscribed Circle Diameter (Decimal Inch)0.3750"
Inscribed Circle Diameter (mm)9.53mm
Hole Diameter (mm)4.40mm
Insert Thickness (Decimal Inch)0.1563"
Insert Thickness (mm)3.97mm
Relief Angle7 Degree
Rake AnglePositive
Insert MaterialCarbide
Tolerance ClassG
Chip BreakerMESI
Corner Angle55
Insert StyleDCGT
Secondary Workpiece MaterialSteel, Stainless Steel, Small Machining
Primary Workpiece MaterialSteel, Stainless Steel, Small Machining
CoatingAbsotech
Coating ProcessPVD
Standard Designation of the Grade, Main ApplicationP10, M10
Insert Holding MethodScrew-On
