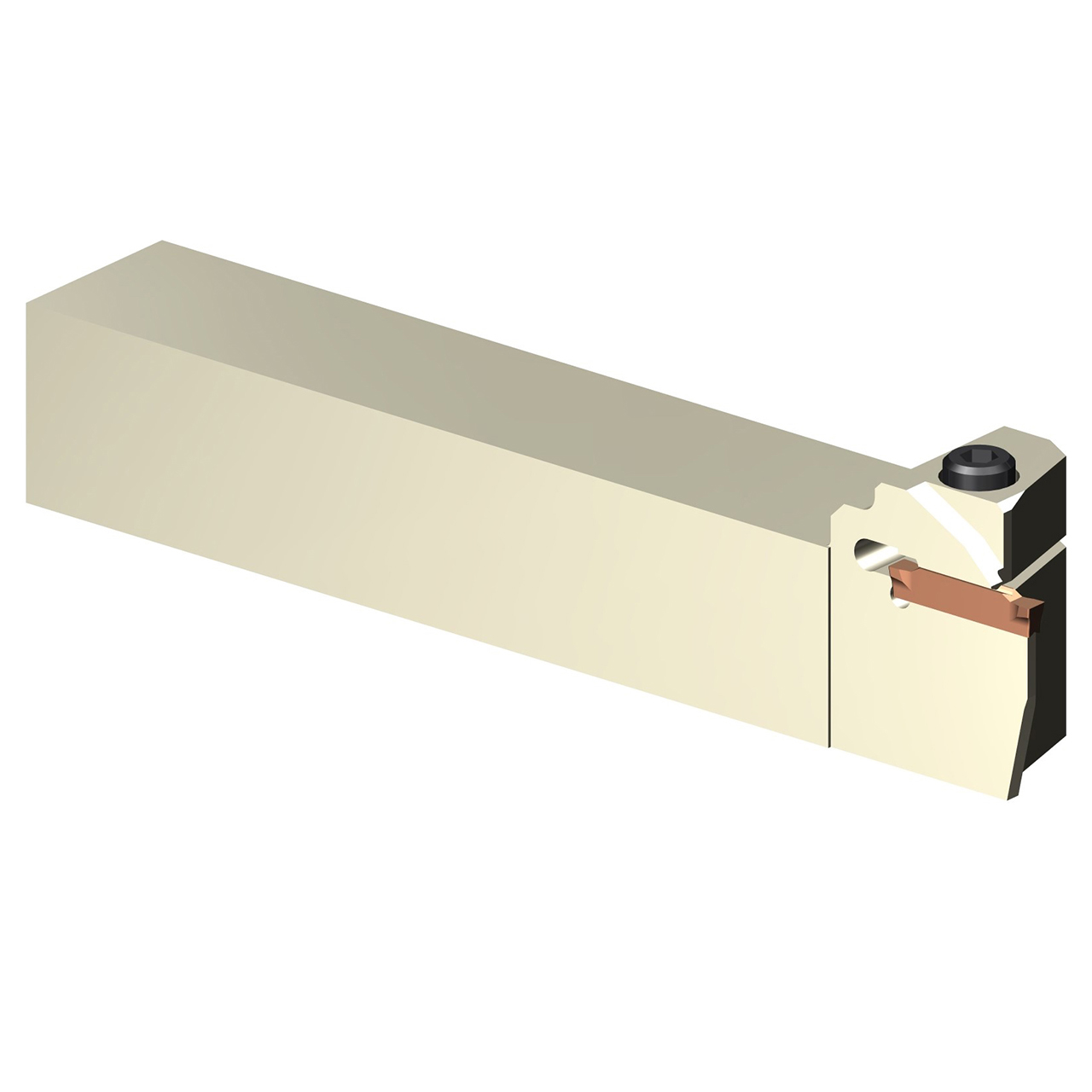

Sumitomo 22TEMP1 | GNDSL166M-040 0.3900" Maximum Depth of Cut x 1.0000" Shank Width x 6.0000" OAL GND Indexable Cut-Off Toolholder

$164.23 $147.81
(You save $16.42)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Hand of Holder:
Left Hand
Maximum Depth of Cut (Inch):
3/8"
Maximum Depth of Cut (Decimal Inch):
0.3900"
Maximum Depth of Cut (mm):
9.91mm
Series:
GND
Toolholder Style:
Shallow OD Grooving Tool
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Shank Height (Inch):
1"
interval quantity:
1
Ships:
From California in 1-2 Days
SKU:
55051822
Weight:
1.90 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Sumitomo 22TEMP1 | GNDSL166M-040 0.3900" Maximum Depth of Cut x 1.0000" Shank Width x 6.0000" OAL GND Indexable Cut-Off Toolholder

Product Specifications
EDP Number22TEMP1
Product Code-ANSIGNDSL166M-040
SeriesGND
Insert Width (Inch)0.2362"
Insert Width (mm)6.00mm
Head Length (Inch)1.3386"
Maximum Depth of Cut (Inch)0.3900"
Maximum Depth of Cut (mm)9.91mm
Shank Width (Inch)1.0000"
Shank Height (Inch)1.0000"
Overall Length (Inch)6.0000"
Insert Holding MethodClamp
HandLeft Hand
Tool Holder StyleShallow OD Grooving Tool
