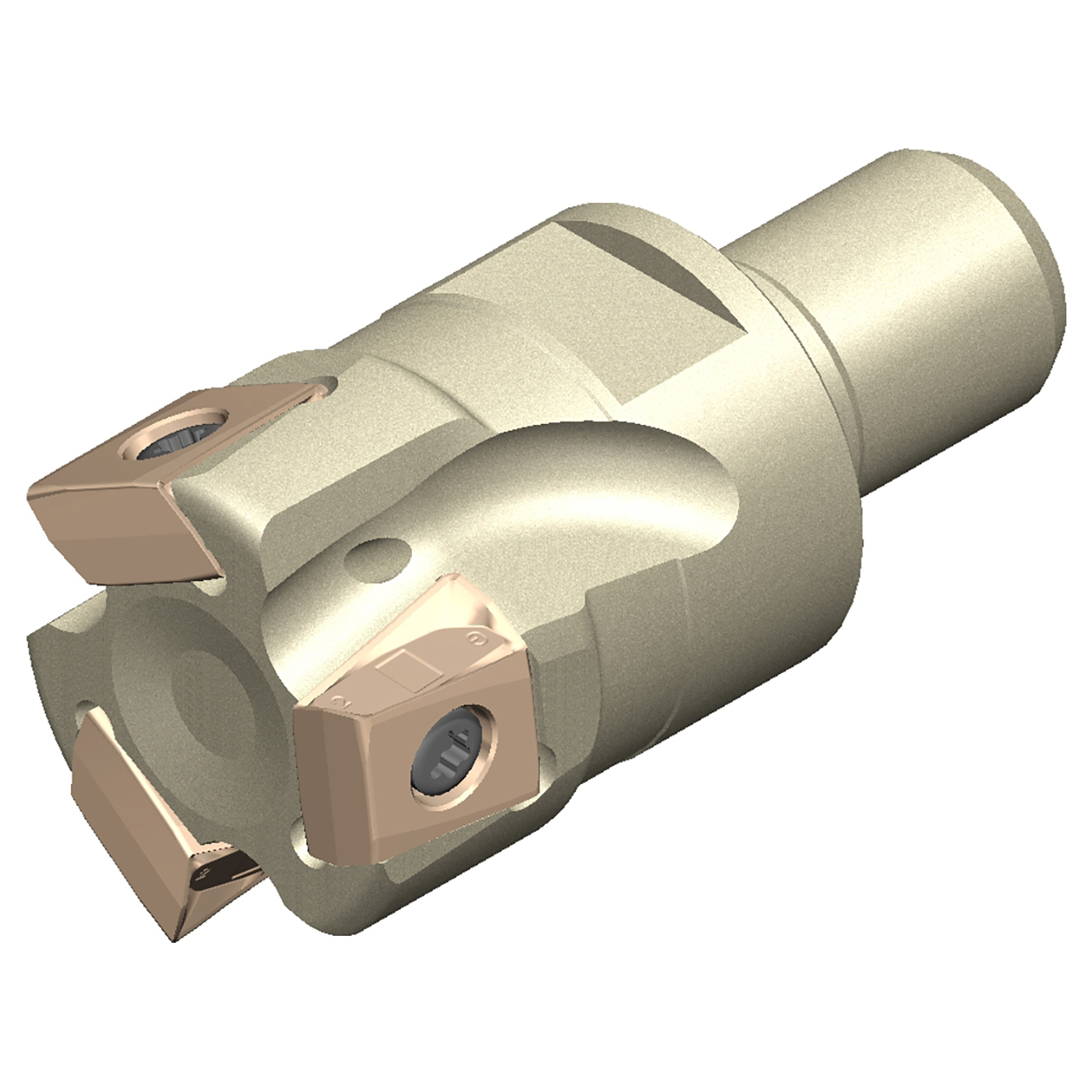

Sumitomo 2900W4W | TSX41500M16Z4 1.5000" Diameter x 0.4720" Depth of Cut x 2.4800" OAL TSX Indexable Square-Shoulder End Mill

$477.65 $429.89
(You save $47.76)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Cutting Diameter (Inch):
1-1/2"
Cutting Diameter (Decimal Inch):
1.5000"
Cutting Diameter (mm):
38.10mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.4800"
Overall Length (mm):
62.99mm
Series:
TSX
Through Coolant:
Yes
interval quantity:
1
Ships:
From California in 1-2 Days
SKU:
23186193
Weight:
1.23 LBS
Shipping:
Free Shipping
Sumitomo 2900W4W | TSX41500M16Z4 1.5000" Diameter x 0.4720" Depth of Cut x 2.4800" OAL TSX Indexable Square-Shoulder End Mill

Product Specifications
EDP Number2900W4W
Product Code-ANSITSX41500M16Z4
Maximum Depth of Cut (Decimal Inch)0.4720"
Cutting Diameter (Decimal Inch)1.5000"
Shank Length (Decimal Inch)0.9060"
Overall Length (Decimal Inch)2.4800"
Number of Inserts4
Mounting Screw Hole Size At Machine EndM16
HandR
Insert CompatibilityLNEX13
Cutter StyleTSX
SeriesTSX
Coolant ThroughYes
Tool MaterialSteel
