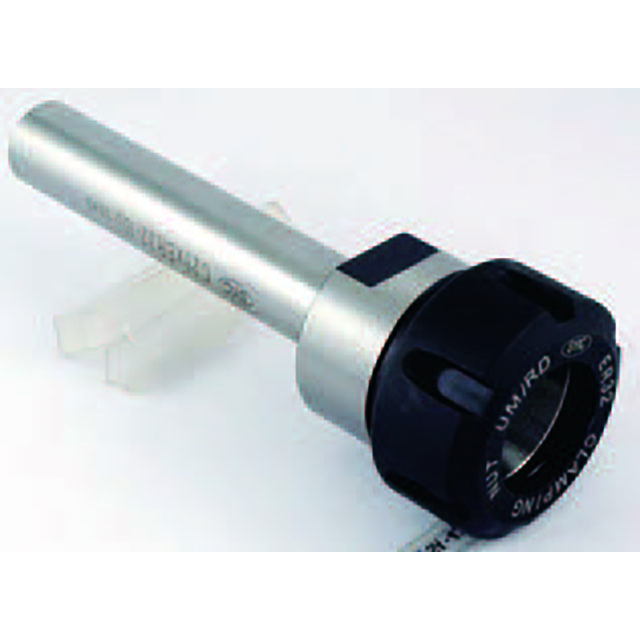

Techniks 04802 | 0.75" Diameter x 0.75" Shank x 65.6mm OAL Collet Chuck Extension

$262.00 $183.40
(You save $78.60)
Brand:
Techniks
Taper Size:
STRSHK
Collet Series:
ER16
Shank Size (Inch):
3/4"
Body Diameter (Inch):
3/4"
Nose Diameter (mm):
22.00mm
Taper Length (mm):
10.00mm
Overall Length (mm):
65.60mm
interval quantity:
1
SKU:
55030114
UPC:
Weight:
0.33 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • For coolant up to 1,500 PSI
  • Collet pocket T.I.R. 0.0001"
  • PowerCOAT coolant nut included

Product Specifications
Collet SeriesER16
Overall Diameter (Inch)0.75"
Shank Size (Inch)0.75"
Taper Length (mm)10mm
Overall Length (mm)65.6mm
Projection (mm)55.6mm
Nose Diameter (mm)22mm
Thread1/4-18

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Techniks
Taper Size:
STRSHK
Collet Series:
ER16
Shank Size (Inch):
3/4"
Body Diameter (Inch):
3/4"
Nose Diameter (mm):
22.00mm
Taper Length (mm):
10.00mm
Overall Length (mm):
65.60mm
interval quantity:
1
