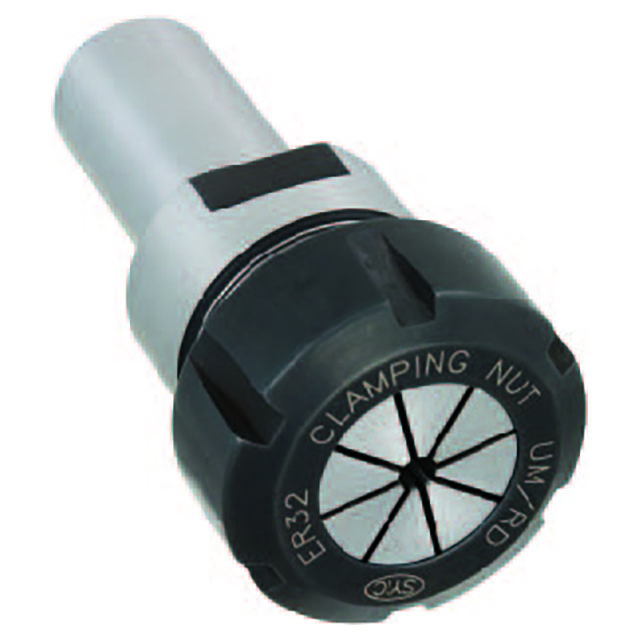

Techniks 04836-57.75 | 0.75" Diameter x 0.75" Shank x 104mm OAL Collet Chuck Extension

$199.00 $139.30
(You save $59.70)
Brand:
Techniks
Taper Size:
STRSHK
Collet Series:
ER20
Shank Size (Inch):
3/4"
Body Diameter (Inch):
3/4"
Nose Diameter (mm):
34.00mm
Taper Length (mm):
46.25mm
interval quantity:
1
SKU:
55030121
UPC:
Weight:
2.20 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Balanced to 25,000 RPM at G2.5
  • Maximum 0.0001" T.I.R. measured from taper to collet pocket
  • PowerCOAT Nut increases holding power by 75%

Product Specifications
Collet SeriesER20
Overall Diameter (Inch)0.75"
Shank Size (Inch)0.75"
Taper Length (mm)46.25mm
Overall Length (mm)104mm
Projection (mm)57.75mm
Nose Diameter (mm)34mm
