Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

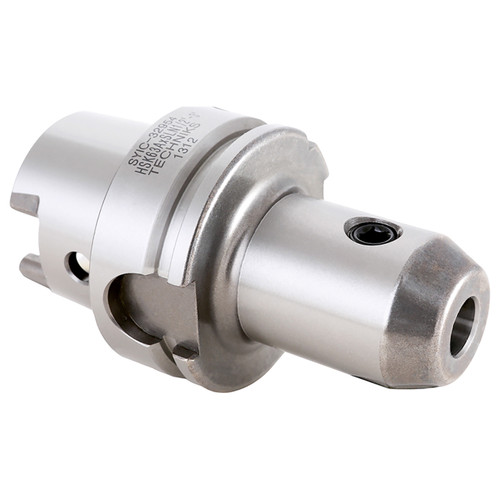

Techniks End Mill Holders are precision machined to an Industry Leading H5 standard I.D. hole tolerance. Techniks End Mills are balanced to 15,000 RPM to save spindle bearing life and the Taper is ground to AT3 standard for maximum spindle contact. Each holder is lab certified with an individual report to ensure quality.| UNSPSC Code | 27112809 |
| Nose Diameter (in) | 1.38 |
| Nose Diameter (mm) | 35.1 |
| Bore I.D. (in) | 0.5 |
| Bore I.D. (mm) | 12.7 |
| Taper Type | HSK63A |
| Material | 8620 Steel |
| Type | End Mill Holder |
| Style | Single End |
| Gage Length (in) | 3 |
| Gage Length (mm) | 76.2 |
| Overall Length (in) | 4.26 |
| Overall Length (mm) | 108.2 |
