Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

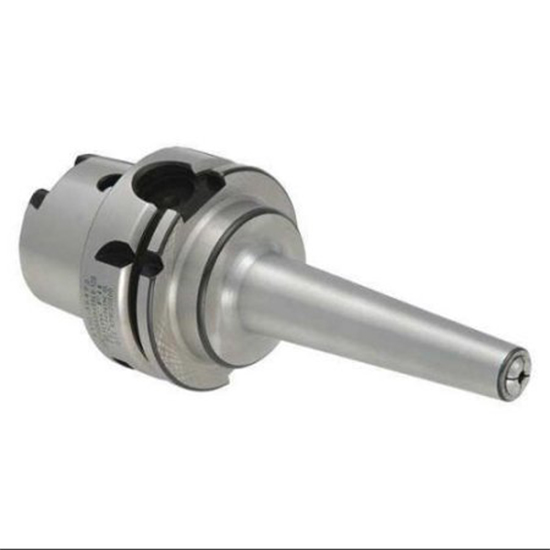

Techniks SlimFIT Collet Chucks are individually lab tested, inspected, and certified for quality. The holder is balanced to 25,000 RPM at G2.5 Tolerance so that T.I.R. is 0.0001" or better. Coolant-thru is a standard feature. Techniks Tool Holders are backed by our 100% Performance Guarantee.| UNSPSC Code | 27112809 |
| Nose Dia (in) | 0.55 |
| Nose Dia (mm) | 14 |
| Body Dia (in) | 0.709 |
| Body Dia (mm) | 18 |
| Collet Series | SlimFIT 6 |
| Mount | HSK63A |
| Unit of Tool | Metric |
| Shank Range (in) | 0.094 - 0.25 |
| Shank Range (mm) | 2.39 - 6.35 |
| Shank Size (in) | N/A |
| Shank Size (mm) | N/A |
| Type | SlimFIT Tool Holder |
| Style | Single Ended |
| Overall Diameter (in) | 2.48 |
| Overall Diameter (mm) | 63 |
| Gage Length (in) | 3.15 |
| Gage Length (mm) | 80 |
| Gage Length-Face Contact (in) | 3.15 |
| Gage Length-Face Contact (mm) | 80 |
| Overall Length (in) | 4.41 |
| Overall Length (mm) | 112 |
| Material | H13 Steel |
