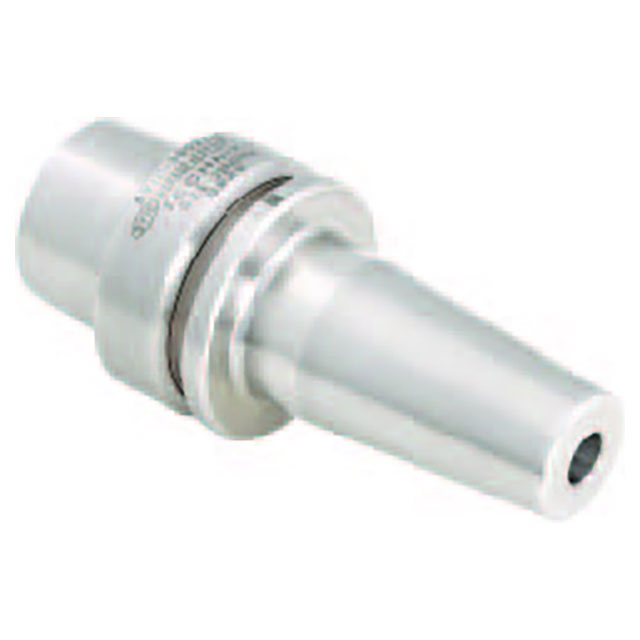

Techniks 39026 | 1.65" Diameter x 0.75" Size x 4.93" OAL HSK50A Shrink-Fit Tool Holder

$304.00 $288.80
(You save $15.20)
Brand:
Techniks
Taper Size:
HSK50A
Body Diameter (Decimal Inch):
1.6500"
Nose Diameter (Decimal Inch):
1.4200"
Overall Length (Decimal Inch):
4.9300"
Overall Diameter (Decimal Inch):
2.0000"
Bore Size (Inch):
3/4"
interval quantity:
1
SKU:
55031275
UPC:
Weight:
2.25 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Two offset axial tapered locking screws
  • maximize rigidity and allow fast tool changes
  • Use extensions to increase boring depth

Product Specifications
TaperHSK50A
Taper Diameter (Inch)1.5"
Body Diameter (Inch)1.65"
Overall Diameter (Inch)2"
Bore Size (Inch)0.75"
Projection Length (Inch)3.94"
Nose Diameter (Inch)1.42"
Overall Length (Inch)4.93"
Nose Length (Inch)1.97"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Techniks
Taper Size:
HSK50A
Body Diameter (Decimal Inch):
1.6500"
Nose Diameter (Decimal Inch):
1.4200"
Overall Length (Decimal Inch):
4.9300"
Overall Diameter (Decimal Inch):
2.0000"
Bore Size (Inch):
3/4"
interval quantity:
1
