Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

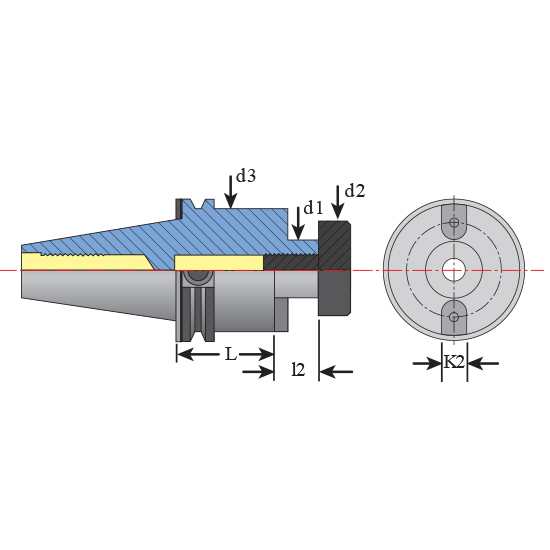

DualDRIVE Spindles offer a one piece design that is compatible with both dual contact and standard spindles. DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R. This extends feed rates up to 20% and extends tool life while reducing scrap.| UNSPSC Code | 27112809 |
| Overall Diameter (in) | 3.875 |
| Overall Diameter (mm) | 98.4 |
| Body Width (in) | 2.75 |
| Body Width (mm) | 69.9 |
| Taper Type | CAT50 |
| Material | 8620 Steel |
| Type | DualDRIVE Face Mill Arbor |
| Style | Single Ended |
| Coolant Supply | Optional through Arbor Screw |
| Hub Diameter (in) | 1.25 |
| Hub Diameter (mm) | 31.75 |
| Gage Length (in) | 1.5 |
| Gage Length (mm) | 38.1 |
| Gage Length-Face Contact (in) | 1.364 |
| Gage Length-Face Contact (mm) | 34.65 |
| Pilot Length (in) | 0.69 |
| Pilot Length (mm) | 17.5 |
