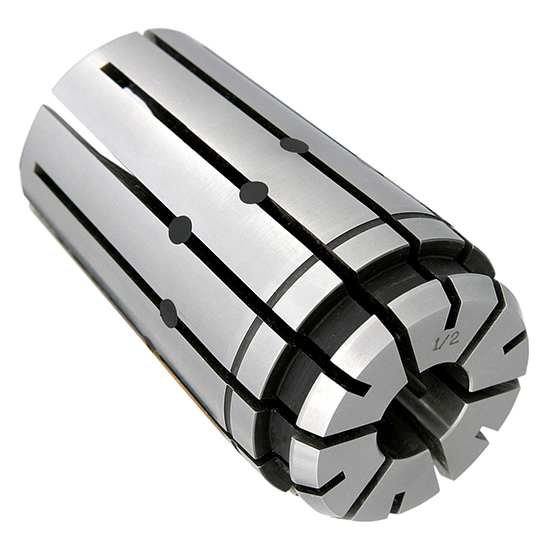

Techniks Swiss Ground Coolant Collets are the most accurate in the industry with T.I.R. of 0.0004" or less. The Rubber Sealed Plugs are perfect for coolant applications up to 750 PSI of Coolant Pressure. They offer a clamping range of up to 1/64" for added versatility.| UNSPSC Code | 27112808 |
| Series | TG100 |
| Capacity (in) | 0.625 - 0.609 |
| Capacity (mm) | 15.875 - 15.478 |
| Type | Plugged Coolant Collet |
| Style | Single Angle |
| Unit of Tool | Inch |
| Number of Pieces | N/A |
| Incremental Division | N/A |
| Shank Size (in) | 0.625 |
| Shank Size (mm) | 15.875 |
| Overall Length (in) | 2.375 |
| Overall Length (mm) | 60.33 |
| Square Size (in) | N/A |
| Square Size (mm) | N/A |
| Tap Range (in) | N/A |
| Tap Range (mm) | N/A |
| Tap Size (in) | N/A |
| Tap Size (mm) | N/A |
