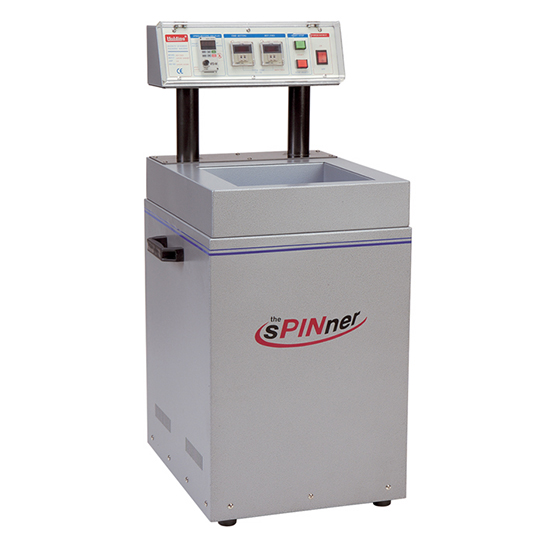

Techniks EHD-735 | 23" x 26" x 34" sPINner Deburring Machine

Micro Deburring performs batch deburring on small, precision parts made from non-ferrous materials. Eliminates the need for hand deburring. Excellent for deburring and chamfering. Great for irregular parts, internal holes, blind angles, etc. No deformation of parts, no surface damage, no effect on accuracy of parts. Works well on internal tubular surfaces or high precision parts with no deformation. Long life cycle of media, 3 - 5 years in typical applications. Easy to use, workpieces can be removed without interrupting machine.

HOW THE SPINNER WORKS

• A powerful magnet located inside the sPINner body activates a rotating magnetic field from under the sPINner well, stirring the contents within your sPINner tub.

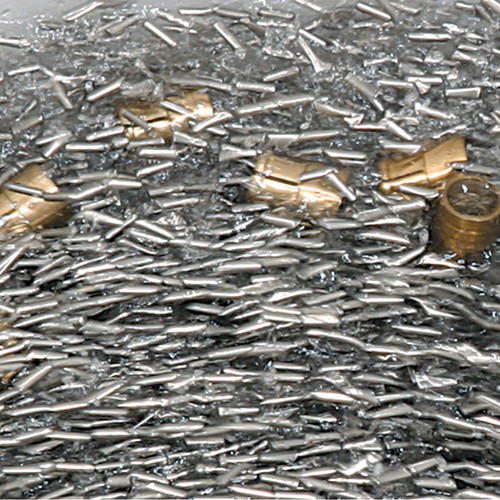

• The tumbling action of the magnetized stainless steel pin media effectively deburrs, smooths rough edges, and polishes your parts for the highest quality finish possible.

OPERATION PROCEDURE

• Choose the container based on the amount and size of your parts.
• Place a single layer of your parts on the bottom of the container, make sure your
• parts are not overlapping.
• Mix water & deburring solution for a 50:1 water to solution ratio.
• (Add more solution for brighter, shiny parts.)
• Secure lid to container.
• Enter cycle time, adjust speed / intensity, and press START.
• (Note: cycle time, media size, and parts quantity will depend on your specific
• application.)

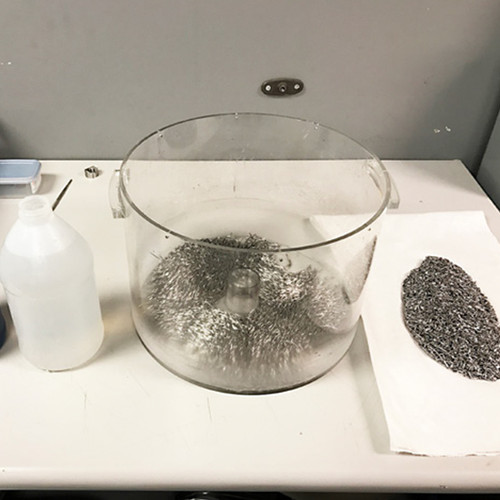

PARTS & MEDIA SEPARATION PROCEDURE

• Slowly drain water/solution leaving parts and media.
• Place media and parts into the separation container.
• Turn the spin frequency to about 1/2 power. Turn on the machine for about 10
• seconds.
• Stop the machine. Your parts should be trapped in the top of the separation
• container. The pins will be pulled through the separation container to the bottom.
• (Repeat until media and parts are fully separated.)

PARTS & MEDIA SEPARATION PROCEDURE

• Slowly drain water/solution leaving parts and media.
• Place media and parts into the separation container.
• Turn the spin frequency to about 1/2 power. Turn on the machine for about 10
• seconds.
• Stop the machine. Your parts should be trapped in the top of the separation
• container. The pins will be pulled through the separation container to the bottom.
• (Repeat until media and parts are fully separated.)
