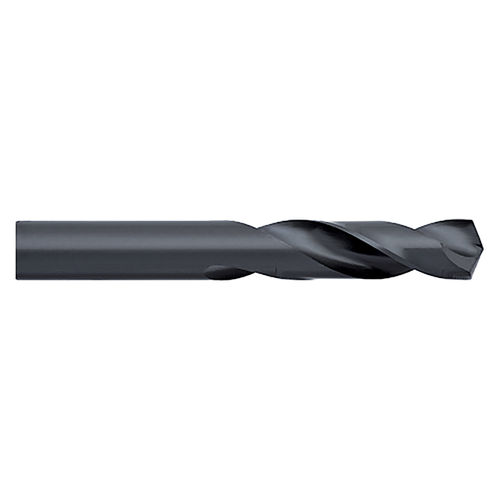

Titan USA CD30031 | 0.4844" (31/64) Diameter x 0.4844" (31/64) Shank x 2.1875" (2-3/16) Flute Length x 3.6875" (3-11/16) OAL 2 Flute Black Oxide Coated High Speed Steel Screw Machine Length Drill Bit

$6.12
Brand:
Titan USA
Drill Bit Size (Inch):
31/64"
Drill Bit Size (Decimal Inch):
0.4844"
Drill Bit Size (mm):
12.30mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
2-3/16"
Flute Length (Decimal Inch):
2.1875"
Flute Length (mm):
55.56mm
Overall Length (Inch):
3-11/16"
Overall Length (Decimal Inch):
3.6875"
Overall Length (mm):
93.66mm
Material:
High Speed Steel
Finish/Coating:
Black Oxide
interval quantity:
6
SKU:
10250593
Weight:
0.15 LBS
Shipping:
Calculated at Checkout

Features:

  • Stub length for increased rigidity
  • 135 Degree Split Point, Type "C" (Diameters <0.0625" not split)
  • Black Oxide finish increases wear resistance and adds lubricity to improve chip flow
  • High speed steel
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberCD30031
Drill Diameter (Inch)0.4844" (31/64)
Shank Diameter (Inch)0.4844" (31/64)
Overall Length (Inch)3.6875" (3-11/16)
Flute Length (Inch)2.1875" (2-3/16)
Point Angle (Degree)135 Degree
CoatingBlack Oxide
SubstrateHigh Speed Steel
Number of Flutes2
Product TypeScrew Machine Length Drill Bit
