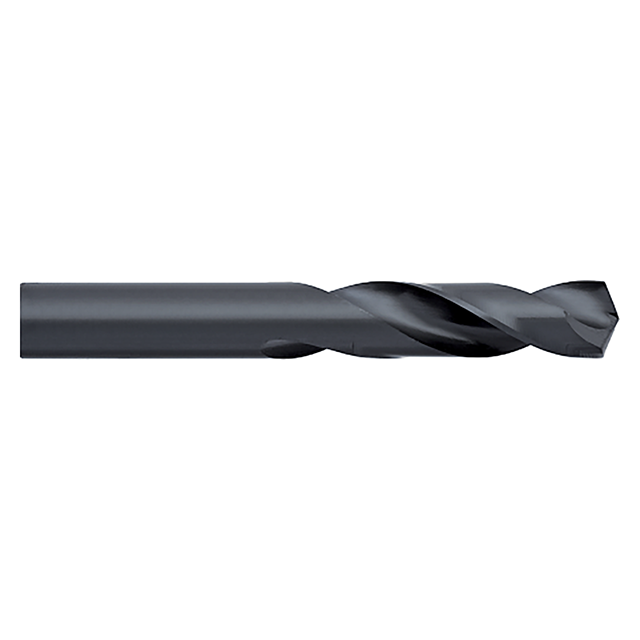

Features:
- Stub length for increased rigidity
- 135 Degree Split Point, Type "C" (Diameters <0.0625" not split)
- Black Oxide finish increases wear resistance and adds lubricity to improve chip flow
- High speed steel
- Precision manufactured in the USA
Product Specifications
Manufacturer Part Number | CD30255 |
Drill Diameter (Inch) | 0.0520" |
Shank Diameter (Inch) | 0.0520" |
Overall Length (Inch) | 1.6250" (1-5/8) |
Flute Length (Inch) | 0.6250" (5/8) |
Point Angle (Degree) | 135 Degree |
Coating | Black Oxide |
Substrate | High Speed Steel |
Number of Flutes | 2 |
Product Type | Screw Machine Length Drill Bit |
![](https://cdn11.bigcommerce.com/s-mzpq4daxph/product_images/uploaded_images/warning-icon-new.png)
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Bit Size (Inch):
3/64"
Drill Bit Size (Decimal Inch):
0.0520"
Drill Bit Size (mm):
1.32mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
5/8"
Flute Length (Decimal Inch):
0.6250"
Flute Length (mm):
15.88mm
Overall Length (Inch):
1-5/8"
Overall Length (Decimal Inch):
1.6250"
Overall Length (mm):
41.28mm
Material:
High Speed Steel
Finish/Coating:
Black Oxide
interval quantity:
12
