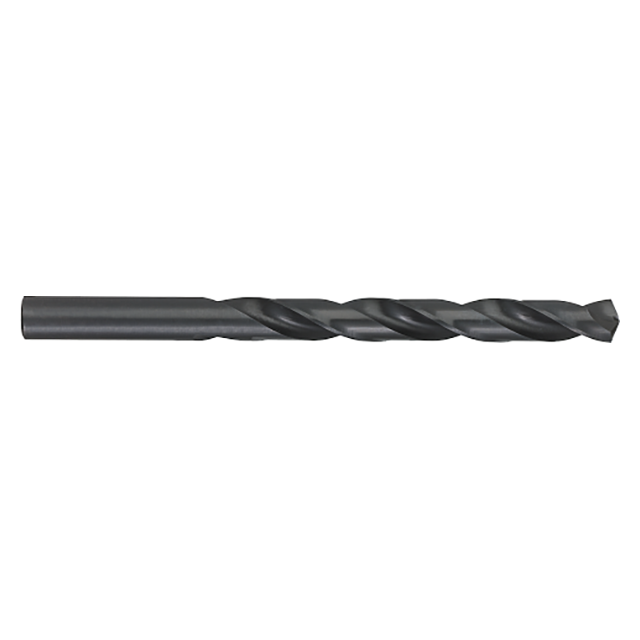

Name: Titan USA CD44017 | 0.2656" (17/64) Diameter x 0.2656" (17/64) Shank x 2.8750" (2-7/8) Flute Length x 4.1250" (4-1/8) OAL 2 Flute Black Oxide Coated High Speed Steel Jobber Length Drill Bit
Brand: Titan USA
SKU: 10245582
Price: 2.97 USD
Availability: InStock

Titan USA CD44017 | 0.2656" (17/64) Diameter x 0.2656" (17/64) Shank x 2.8750" (2-7/8) Flute Length x 4.1250" (4-1/8) OAL 2 Flute Black Oxide Coated High Speed Steel Jobber Length Drill Bit

$2.97

interval quantity:

SKU:

10245582

Weight:

0.05 LBS

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Featured on the drills within this selection of Titan USA Jobber Length High Speed Steel Drills, minimizes friction during machining and improves lubricity.

Features:

High speed steel
Jobber length for deeper drilling applications
135 Degree Split Point, Type "B" (Diameters <0.0625" not split)
Black Oxide finishes for increased wear resistance and added lubricity for improved chip flow
Precision manufactured in the USA

Product Specifications

Manufacturer Part Number	CD44017
Drill Diameter (Inch)	0.2656" (17/64)
Shank Diameter (Inch)	0.2656" (17/64)
Flute Length (Inch)	2.8750" (2-7/8)
Overall Length (Inch)	4.1250" (4-1/8)
Number of Flutes	2
Point Angle (Degree)	135 Degree
Coating	Black Oxide
Substrate	High Speed Steel
Product Type	Jobber Length Drill Bit

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

interval quantity:

Titan USA CD44017 | 0.2656" (17/64) Diameter x 0.2656" (17/64) Shank x 2.8750" (2-7/8) Flute Length x 4.1250" (4-1/8) OAL 2 Flute Black Oxide Coated High Speed Steel Jobber Length Drill Bit

Warning:
