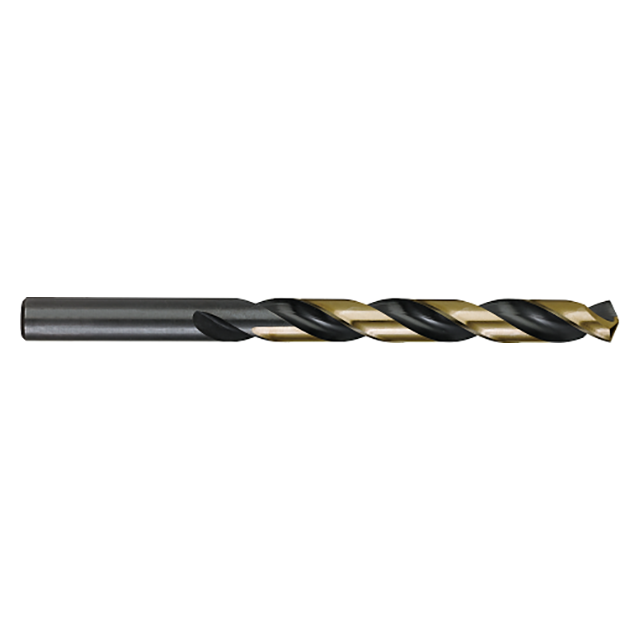

Featured on the drills within this selection of Titan USA Jobber Length High Speed Steel Drills, minimizes friction during machining and improves lubricity.
Features:
- High speed steel
- Jobber length for deeper drilling applications
- 135 Degree Split Point, Type "B" (Diameters <0.0625" not split)
- Black & Gold Oxide finishes for increased wear resistance and added lubricity for improved chip flow
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | CD44728 |
| Drill Diameter (Inch) | 0.1405" |
| Shank Diameter (Inch) | 0.1405" |
| Flute Length (Inch) | 1.7500" (1-3/4) |
| Overall Length (Inch) | 2.8750" (2-7/8) |
| Number of Flutes | 2 |
| Point Angle (Degree) | 135 Degree |
| Coating | Black & Gold Oxide |
| Substrate | High Speed Steel |
| Product Type | Jobber Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Bit Size (Inch):
9/64"
Drill Bit Size (Decimal Inch):
0.1405"
Drill Bit Size (mm):
3.57mm
Drill Point Angle:
135 Degree
Overall Length (Inch):
2-7/8"
Overall Length (Decimal Inch):
2.8750"
Overall Length (mm):
73.03mm
Material:
High Speed Steel
Finish/Coating:
Black & Gold Oxide
interval quantity:
12
