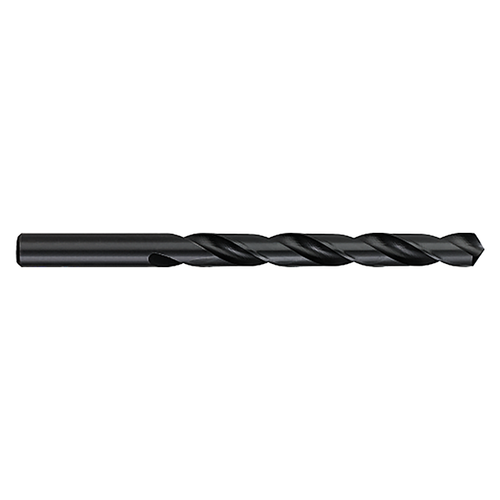

Featured on the drills within this selection of Titan USA Jobber Length High Speed Steel Drills, minimizes friction during machining and improves lubricity.
Features:
- High speed steel
- Jobber length for deeper drilling applications
- 135 Degree Split Point, Type "B" (Diameters <0.0625" not split)
- Black & Gold Oxide finishes for increased wear resistance and added lubricity for improved chip flow
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | CD44747 |
| Drill Diameter (Inch) | 0.0785" |
| Shank Diameter (Inch) | 0.0785" |
| Flute Length (Inch) | 1.0000" (1) |
| Overall Length (Inch) | 2.0000" (2) |
| Number of Flutes | 2 |
| Point Angle (Degree) | 135 Degree |
| Coating | Black & Gold Oxide |
| Substrate | High Speed Steel |
| Product Type | Jobber Length Drill Bit |
